Name: 2736369
Brand: Phoenix Contact
SKU: PHX2736369

Official Distributor

By Phoenix Contact

SKU

MPN

FLM DIO 4/4 M12-2A

Weight

0.367 kg

Series FLM-DIO

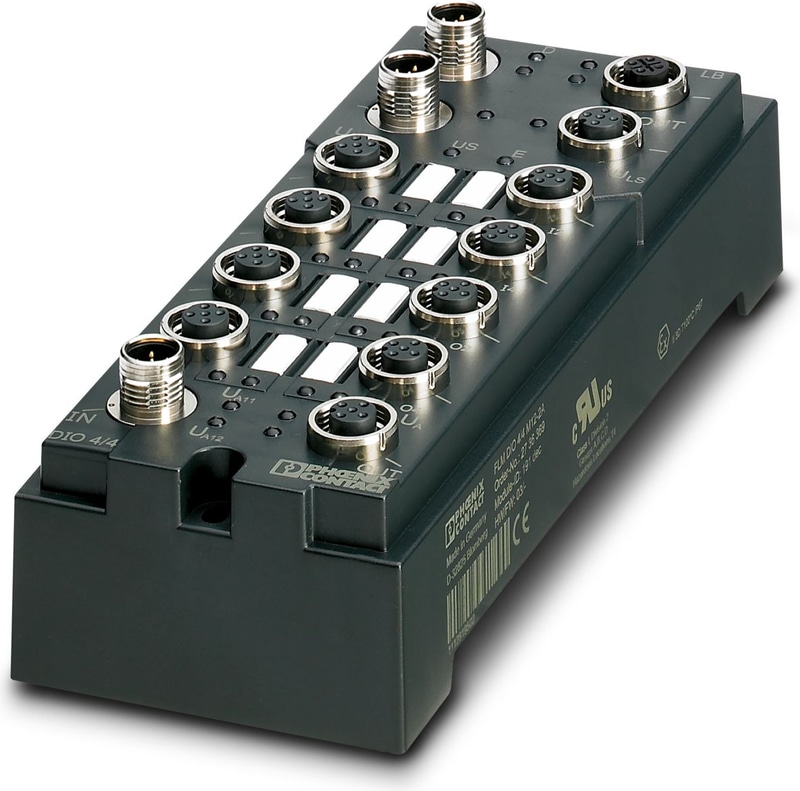

FLM DIO 4/4 M12-2A - Distributed I/O device

The local bus device has digital inputs and outputs. Functions: 4 digital inputs, 3 ms filter time, 4 digital outputs of 2 A each, 500 kbaud/2 Mbaud selection, channel-specific diagnostics, short-circuit and overload protection, M12 fast connection technology.

Flexible power supply concept
Short-circuit and overload protection
Diagnostic and status indicators
SPEEDCON fast locking system
Consistent connection via M12 connectors

Dimensions

Width	70 mm
Height	178 mm
Depth	50 mm
Drill hole spacing	168 mm

Connection Method	M12 connector, B-coded
Designation connection point	Copper cable
Number of Positions	5
Transmission Speed	500 kbps / 2 Mbps (can be switched)

Module

ID code (dec.)	191
ID code (hex)	BF
Length code (hex)	41
Process data channel	4 bit
Input address area	4 bit
Output address area	4 bit
Register length	4 bit
Required parameter data	3 Byte
Required configuration data	5 Byte

Digital:

Input name	Digital inputs
Description of the input	IEC 61131-2 type 1
Number of Inputs	4
Connection Method	M12 connector
Connection technology	2-, 3-, 4-conductor
Input Voltage	24 V DC
Input voltage range "0" signal	-30 V DC ... 5 V DC
Input voltage range "1" signal	13 V DC ... 30 V DC
Nominal input voltage U_IN	24 V DC
Filter time	3 ms
Protective circuit	Reverse polarity protection
Output name	Digital outputs
Connection Method	M12 connector
Connection technology	2-, 3-conductor
Number of Outputs	4
Protective circuit	Short-circuit protection
Output Voltage	24 V DC
Maximum Output Current per channel	2 A

Product properties

Product family	Fieldline
Type	modular
No. of channels	8

Potentials

Voltage supply U_L	24 V DC
Power supply at U_L	max. 4 A
Current consumption from U_L	max. 50 mA (At 2 Mbaud)
Current consumption from U_L	typ. 45 mA (At 2 Mbaud)
Current consumption from U_L	max. 50 mA (At 500 kBaud)
Current consumption from U_L	typ. 40 mA (At 500 kBaud)
Voltage supply U_S	24 V DC
Power supply at U_S	max. 4 A
Current consumption from U_S	typ. 5 mA (plus power supply for sensors)
Current consumption from U_S	max. 600 mA
Voltage supply U_A11	24 V DC
Power supply at U_A11	max. 4 A
Current consumption at U_A11	typ. 3 mA
Current consumption at U_A11	max. 4 A
Voltage supply U_A12	24 V DC
Power supply at U_A12	max. 4 A
Current consumption at U_A12	typ. 3 mA
Current consumption at U_A12	max. 4 A

Supply: Module electronics

Connection Method	M12 connector
Designation	UL
Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 30 V DC (including ripple)

Electrical isolation/isolation of the voltage ranges

Test voltage: To I/O

500 V AC

Connection data

Connection Method

M12 connector

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 60 °C
Degree of Protection	IP65/IP67
Air pressure (operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (storage/transport)	95 %

Standards and Regulations

Protection class

III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Mounting Type

Wall mounting
