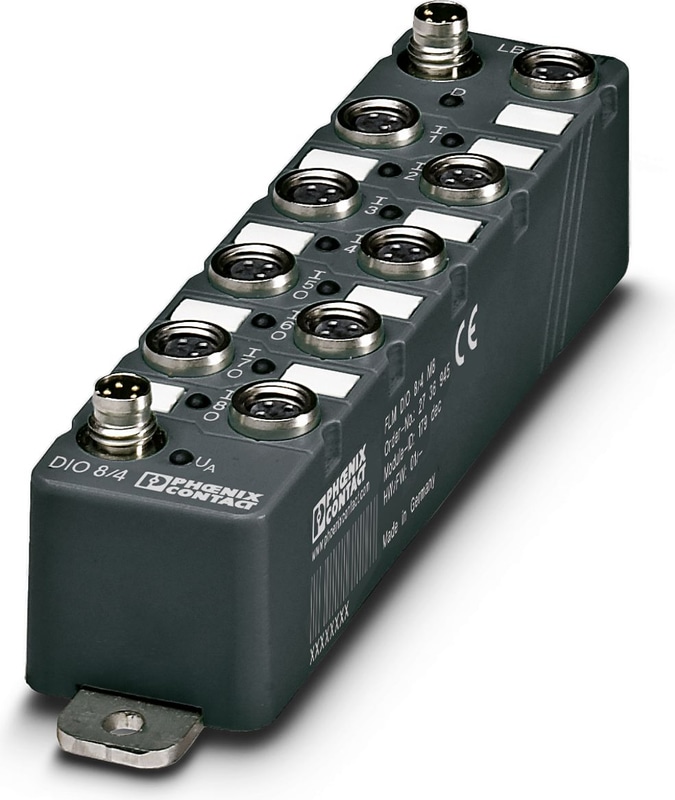

FLM DIO 8/4 M8 - Distributed I/O device

The space-saving local bus device is particularly suitable for use in close proximity to the process. Functions: 4 digital inputs, 4 digital I/Os of 500 mA, maximum, channel-specific diagnostics, short-circuit/overload protection, M8 connection method.

Can also be connected to an Inline station
Optimized for 30 mm mounting profile
Diagnostic and status indicators
Short-circuit and overload protection
Consistent connection via M8 connectors

Dimensions

Width	29.8 mm
Height	143 mm
Depth	26.5 mm
Drill hole spacing	133 mm
Note on dimensions	Length details incl. fixing clips

Material specifications

Color

black

Connection Method	M8 connector
Designation connection point	Copper cable
Number of Positions	4
Transmission Speed	500 kbps

Module

ID code (dec.)	179
ID code (hex)	B3
Length code (hex)	81
Length code (dec)	129
Process data channel	8 bit
Input address area	8 bit
Output address area	8 bit
Register length	8 bit
Required parameter data	3 Byte
Required configuration data	5 Byte

Digital:

Input name	Digital inputs
Description of the input	IEC 61131-2 type 1
Number of Inputs	8 (4 fixed, 4 freely selectable)
Connection Method	M8 connector
Connection technology	2-, 3-conductor
Input Voltage	24 V DC
Input voltage range "0" signal	-30 V DC ... 5 V DC
Input voltage range "1" signal	13 V DC ... 30 V DC
Nominal input voltage U_IN	24 V DC
Filter time	3 ms
Protective circuit	Reverse polarity protection
Output name	Digital outputs
Connection Method	M8 connector
Connection technology	2-, 3-conductor
Number of Outputs	4 (Can also be used as an input)
Protective circuit	Short-circuit protection
Output Voltage	24 V DC
Maximum Output Current per channel	500 mA

Product properties

Product family	Fieldline
Type	modular
No. of channels	8

Potentials

Voltage supply U_L

24 V DC

Supply: Module electronics

Connection Method	M8 connector
Designation	UL
Number of Positions	4
Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 30 V DC (including ripple)
Supply current	3 A

Electrical isolation/isolation of the voltage ranges

Test voltage: To I/O

500 V AC

Connection data

Connection Method

M8 connector

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 60 °C
Degree of Protection	IP65/IP67
Air pressure (operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 %
Permissible humidity (storage/transport)	10 % ... 95 %

Standards and Regulations

Protection class

III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Mounting Type

Wall mounting

1682540
PROT-M8 - An M8 screw plug for the unoccupied M8 sockets of the sensor/actuator cable, boxes and flush-type connectors
0808781
Zack Marker strip, flat - ZBF 8:UNBEDRUCKT
1543249
SAC-4P-M 8MS/ 2,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 2 m
1543252
SAC-4P-M 8MS/ 5,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 5 m
1543265
SAC-4P-M 8MS/10,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 10 m
1543278
SAC-4P-M 8MS/15,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 15 m
1543281
SAC-4P-M 8MS/20,0-950 - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on free cable end, cable length: 20 m
1543294
SAC-4P- 2,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 2 m
1543304
SAC-4P- 5,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 5 m
1543317
SAC-4P-10,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 10 m
1543320
SAC-4P-15,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 15 m
1543333
SAC-4P-20,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), free cable end, on Socket straight M8, coding: A, cable length: 20 m
1543346
SAC-4P-M 8MS/ 0,13-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 0.13 m
1543511
SAC-4P-M 8MS/ 0,3-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 0.3 m
1543524
SAC-4P-M 8MS/ 0,5-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 0.5 m
1543537
SAC-4P-M 8MS/ 1,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 1 m
1543359
SAC-4P-M 8MS/ 2,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 2 m
1543362
SAC-4P-M 8MS/ 5,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 5 m
1543375
SAC-4P-M 8MS/10,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 10 m
1543388
SAC-4P-M 8MS/15,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 15 m
1543391
SAC-4P-M 8MS/20,0-950/M 8FS - Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M8, coding: A, on Socket straight M8, cable length: 20 m
1543582
Sensor/actuator cable - SAC-4P- 2,0-PUR/M 8FS 0,34
1534818
Sensor/actuator cable - SAC-4P- 5,0-PUR/M 8FS 0,34
1543595
Sensor/actuator cable - SAC-4P-10,0-PUR/M 8FS 0,34
1543605
Sensor/actuator cable - SAC-4P-15,0-PUR/M 8FS 0,34
1543618
Sensor/actuator cable - SAC-4P-20,0-PUR/M 8FS 0,34
1697771
Sensor/actuator cable - SAC-4P-M 8FS/.../...
2736961
FLM ADAP M12/M8 - Adapter for connecting Fieldline Modular M8 devices to a Fieldline Modular M12 local bus
2736903
IB IL 24 FLM-PAC - Inline, Branch terminal, for extending the Inline local bus, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20, including Inline connector and labeling field
1542897
SACC-M 8MS-4CON-M-0,34-SH - Connector, Universal, 4-position, shielded, Plug straight M8, coding: A, Screw connection, knurl material: Brass, nickel-plated, external cable diameter 3.5 mm ... 5.5 mm
1542910
SACC-M 8FS-4CON-M-0,34-SH - Connector, Universal, 4-position, shielded, Socket straight M8, coding: A, Screw connection, knurl material: Brass, nickel-plated, external cable diameter 3.5 mm ... 5.5 mm
1506781
SACC-M 8FS-4PCON - Connector, Universal, 4-position, Socket straight M8, coding: A, Piercecon® fast connection, knurl material: Brass, nickel-plated, external cable diameter 3 mm ... 5 mm
