2727394
Official DistributorSKU
PHX2727394
MPN
IB IL 400 BR
Weight
0.1 kg
This product is Not Cancellable/Not Returnable
Series IB-IL

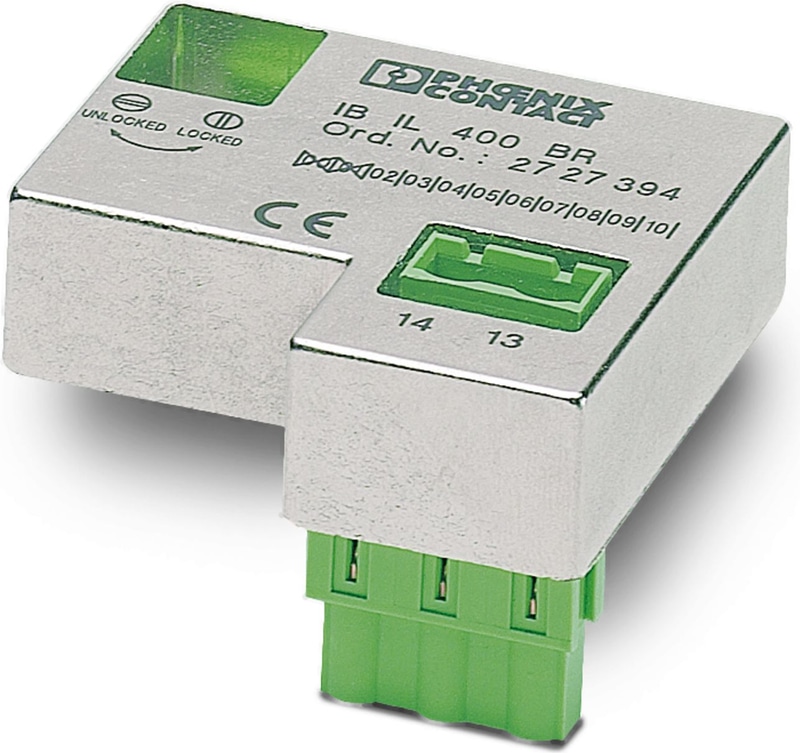

IB IL 400 BR - Inline terminal
Inline extension module, for brake control in conjunction with Inline power level terminals, brake module for 440 V DC or 440 V AC brakes
- Connection option for an external passive brake module
- Hand-held operator panel mode
- Integrated electronic motor protection in accordance with IEC 60947-4
- Diagnostic and status indicators
- Safe isolation between mains voltage and 24 V supply voltage in accordance with EN 50178
- Motor control via OUT process data
- Motor current monitoring
Technical Specifications
Product properties
| Product family | Inline |
| Type | Inline |
| No. of channels | 1 |
Insulation characteristics
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Electrical properties
| Test section | 24 V supply (US), GND, brake control/protective earth ground (PE) 500 V AC 50 Hz 1 min. |
| Test section | 24 V supply (US), GND, brake control/brake output 500 V AC 50 Hz 1 min. |
| Test section | Brake output/protective earth ground (PE) 500 V AC 50 Hz 1 min. |
Brake to be connected
| Connection name | Connection of the brake to the brake module |
| Connection Method | COMBICON connectors |
| Cross section | 2.5 mm² (maximum conductor cross section) |
| Protective circuit | Surge voltage suppression > 750 V |
| Contact connection type | Unpolarized semiconductor switch |
| Connection voltage | 20 V AC ... 440 V AC (no tolerances permitted) |
| Connection voltage | 12 V DC ... 440 V DC (no tolerances permitted) |
| Residual voltage | 3.4 V (maximum) |
Brake module
| Connection name | Connection to the power-level terminal block |
| Connection Method | 3-pos. COMBICON |
| Control voltage | 24 V DC (= Us from the power-level terminal block) |
| Control current | 17 mA |
| Active current limitation | Through resistor |
Output data
| Residual voltage | 3.4 V (maximum) |
Connection data
| Connection Method | COMBICON connectors |
Dimensions
| Width | 55 mm |
| Height | 57 mm |
| Depth | 16 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 55 °C (permitted) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C (permitted) |
| Permissible humidity (operation) | 75 % ... 85 % (75% average, 85% seldom) |
| Permissible humidity (storage/transport) | 75 % ... 85 % (75% average, 85% seldom) |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Mounting
| Mounting Type | In the host system |
