IB IL 400 MLR 1-8A
Weight
0.659 kg
This product is Not Cancellable/Not Returnable
Series IB-IL

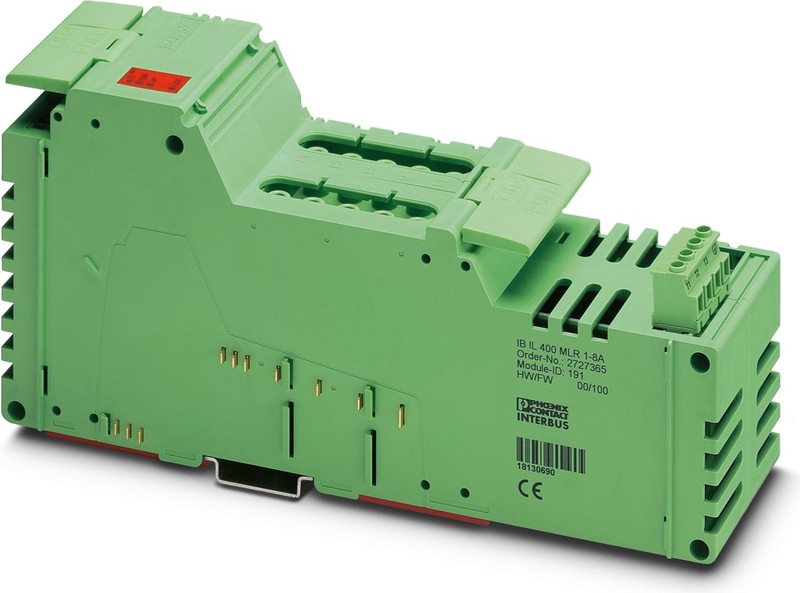

IB IL 400 MLR 1-8A - Inline terminal
Inline power-level terminal blocks, electronic direct starter, up to 3.7 kW / 400 V AC
- Integrated electronic motor protection in accordance with IEC 60947-4
- Connection option for an external passive brake module
- Hand-held operator panel mode
- Motor control via OUT process data
- Motor current monitoring
Technical Specifications
Dimensions
| Width | 63 mm |
| Height | 224 mm |
| Depth | 109 mm |
Inline local bus
| Number of interfaces | 2 |
| Connection Method | Inline data jumper |
| Transmission Speed | 500 kbps |
| Transmission physics | Copper |
Module
| ID code (dec.) | 191 |
| ID code (hex) | BF |
| Length code (hex) | 81 |
| Length code (dec) | 129 |
| Process data channel | 8 bit |
| Input address area | 1 Byte |
| Output address area | 1 Byte |
| Register length | 1 Byte |
| Required parameter data | 5 Byte |
| Required configuration data | 5 Byte |
Digital: Digital inputs
| Number of Inputs | 1 |
| Number of Positions | 4 |
| Filter time | 0.2 ms |
Product properties
| Product family | Inline |
| Type | modular |
| Mounting Position | Panel mounting on horizontal DIN rail |
| Operating mode | Process data mode with one byte |
| Diagnostics messages | Overcurrent Error message in the diagnostic code (bus) and display via the LED ERR on the module |
| Diagnostics messages | Output stage cannot be controlled Error message in the diagnostic code (bus) and display via the LED ERR on the module |
| Diagnostics messages | Module error during self test Message to the master |
Potentials
| Power consumption | max. 4.2 W (entire device) |
Potentials: Communications power (UL)
| Supply Voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 50 mA |
| Power consumption | max. 0.375 W |
Potentials: Segment circuit supply (US)
| Supply Voltage | 24 V DC (via voltage jumper) |
| Supply Voltage Range | 19.2 V DC ... 28.8 V DC (including all tolerances, including ripple) |
| Current draw | max. 160 mA |
Electrical isolation/isolation of the voltage ranges
| Test voltage: Supply voltage UL / 400 V level | 1.2 kV AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage US / 400 V level | 1.2 kV AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage US / brake control switch | 1.2 kV AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage UL / brake control switch | 1.2 kV AC, 50 Hz, 1 min. |
| Test voltage: Local bus/400 V level | 1.2 kV AC, 50 Hz, 1 min. |
| Test voltage: Local bus/Brake control switch | 1.2 kV AC, 50 Hz, 1 min. |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Note | Notes on operation Line protection for the network supply line, max. 20 A. Observe derating of the POWER-COMBICON connector |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 85 % (non-condensing) |
Standards and Regulations
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | To safeguard sufficient ventilation, ensure that there is an installation clearance of a minimum of 50 cm both above and below. |
| Mounting Position | Panel mounting on horizontal DIN rail |
Accessories
IB IL 24 BR/DC - Inline extension module, for brake control in connectionwith Inline power terminal blocks, brake module for 24 V DC brakes
IB IL 400 BR - Inline extension module, for brake control in conjunction with Inline power level terminals, brake module for 440 V DC or 440 V AC brakes
MCVW 1,5/ 4-ST-3,81 - PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: MCVW 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: -90 °, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard
IB IL 24 TC-PAC - Inline thermistor terminal, complete with accessories (connector and marking field), 2-conductor connection technology
