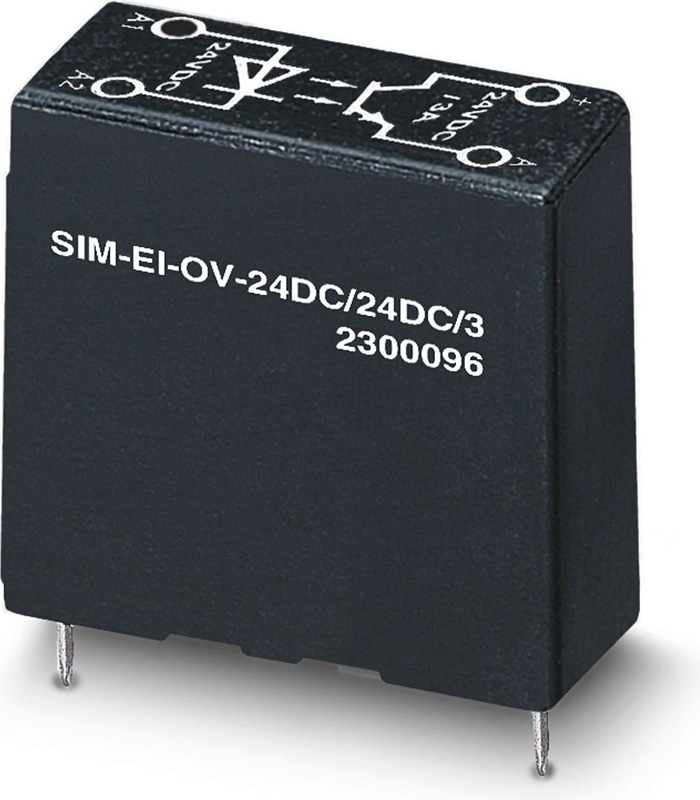

SIM-EI-OV- 24DC/ 24DC/3 - Miniature solid-state relay
Power solid-state relay, with protective circuit in input and output circuits, 24 V DC. DC voltage output of 3 A, max.
Technical Specifications
Electrical properties
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 19.2 V DC ... 28.8 V DC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 7 mA |
| Protective circuit | Reverse polarity protection |
| Protective circuit | Surge protection |
| Transmission frequency | 300 Hz |
Output data
| Design of digital output | electronic |
| Output nominal voltage | 24 V DC |
| Output voltage range | 3 V DC ... 33 V DC |
| Limiting Continuous Current | 3 A (see derating curve) |
| Maximum Inrush Current | 15 A (10 ms) |
| Voltage drop at max. limiting continuous current | ≤ 200 mV |
| Output circuit | 2-conductor, floating |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Surge protection |
Dimensions
| Width | 13 mm |
| Height | 29 mm |
| Depth | 25 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN VDE 0110 |
Mounting
| Assembly instructions | Can be aligned with 2 mm spacing |
| Mounting Position | any |
