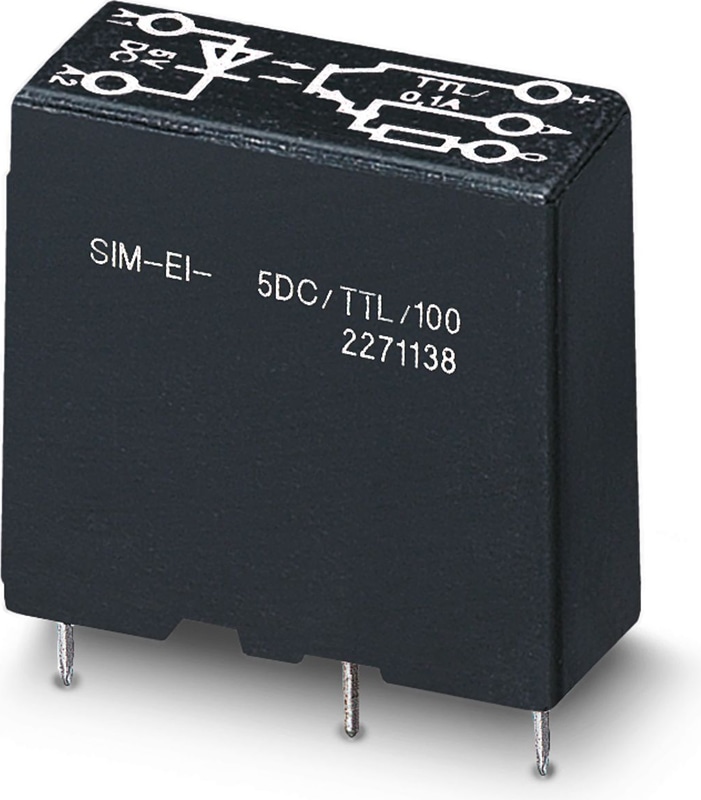

The figure shows version SIM-EI- 5DC/TTL/100
Official DistributorSKU
MPN
SIM-EI-230AC/TTL/100
Weight
0.014 kg
Series SIM-EI
SIM-EI-230AC/TTL/100 - Miniature solid-state relay
Input solid-state relay, with protective circuit in input and output circuits, input: 230 V AC, output: TTL logic level, max. 100 mA
Technical Specifications
Electrical properties
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) |
Input data
| Nominal input voltage UN | 230 V AC |
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 207 V AC ... 253 V AC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 2.1 mA |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Surge protection; Varistor |
| Transmission frequency | 3 Hz |
Output data
| Design of digital output | electronic |
| Output voltage range | 3 V DC ... 5.25 V DC |
| Limiting Continuous Current | 100 mA |
| Fan out | 1 |
| Voltage drop at max. limiting continuous current | 0.3 V |
| Output circuit | 3-conductor, ground-referenced |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Free running; Freewheeling diode |
| Output resistor | approx. 390 Ω |
Dimensions
| Width | 13 mm |
| Height | 29 mm |
| Depth | 25 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN VDE 0110 |
Mounting
| Assembly instructions | Can be aligned with 2 mm spacing |
| Mounting Position | any |
Why Proax for Phoenix Contact 2271206?
Proax is an authorized distributor of Phoenix Contact 2271206 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
