SIM-EI-230AC/48DC/100/RC

Weight

0.02 kg

Series SIM-EI

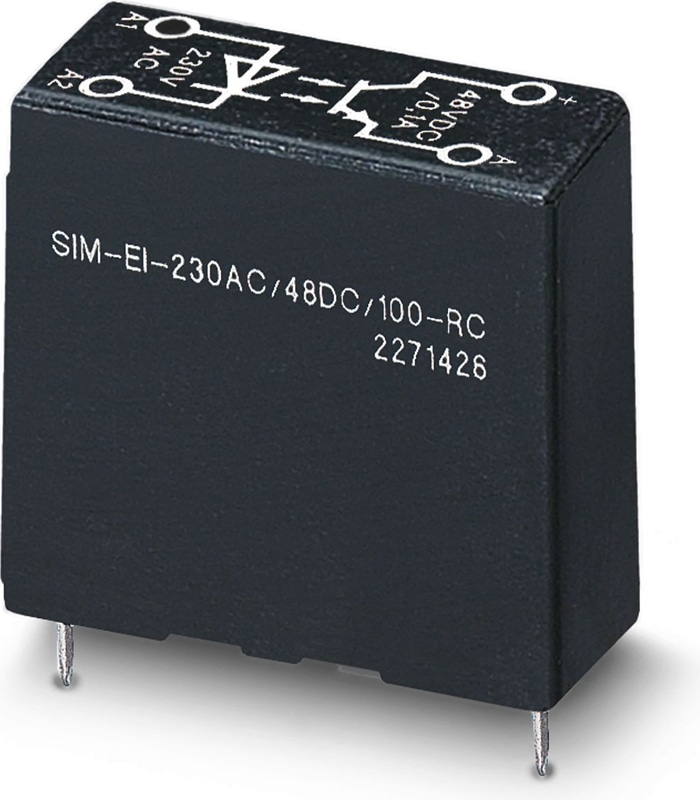

SIM-EI-230AC/48DC/100/RC - Miniature solid-state relay

Input solid-state relay, with protective circuit in input and output circuits, input: 230 V AC, output: 8 - 48 V DC/100 mA

Electrical properties

Test voltage (Input/output)

2.5 kV (50 Hz, 1 min., input/output)

Input data

Nominal input voltage U_N	230 V AC
Input voltage range in reference to U_N	0.9 ... 1.1
Input voltage range	207 V AC ... 253 V AC
Switching threshold "0" signal in reference to U_N	≤ 0.4
Switching threshold "1" signal in reference to U_N	≥ 0.8
Typical input current at U_N	2.5 mA
Protective circuit	RC element; RC element
Transmission frequency	3 Hz

Output data

Design of digital output	electronic
Output voltage range	8 V DC ... 48 V DC
Limiting Continuous Current	100 mA
Voltage drop at max. limiting continuous current	1 V
Output circuit	2-conductor, floating
Protective circuit	Reverse polarity protection; Polarity protection diode

Dimensions

Width	13 mm
Height	29 mm
Depth	25 mm

Ambient conditions

Ambient Temperature (Operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards and Regulations

Standards/regulations

DIN VDE 0110

Mounting

Assembly instructions	Can be aligned with 2 mm spacing
Mounting Position	any
