2287575
Official DistributorSKU
PHX2287575
MPN
FLKM 20/LA/I/S100
Weight
0.183 kg
Series FLKM

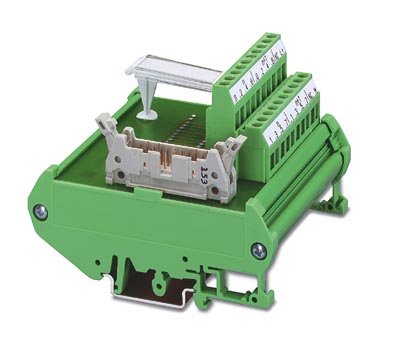

FLKM 20/LA/I/S100 - Passive module
VARIOFACE input module, 16 channels for Siemens SIMATIC® S5-100U, with additional LED status display
Technical Specifications
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Width | 78.8 mm |
| Height | 90 mm |
| Depth | 68 mm |
| Nominal Voltage (UN) | 24 V DC (up to 30 V DC) |
| Mounting Position | any |
| Conductor cross section stranded (Min.) | 0.2 mm² |
| Conductor cross section stranded (Max.) | 2.5 mm² |
| Conductor cross section AWG/kcmil (Min.) | 24 |
| Conductor cross section AWG/kcmil (Max.) | 12 |
Why Proax for Phoenix Contact 2287575?
Proax is an authorized distributor of Phoenix Contact 2287575 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
