2904889
Official DistributorSKU
PHX2904889
MPN
FLKM 10-PA-ROC800
Weight
0.038 kg
Series FLKM

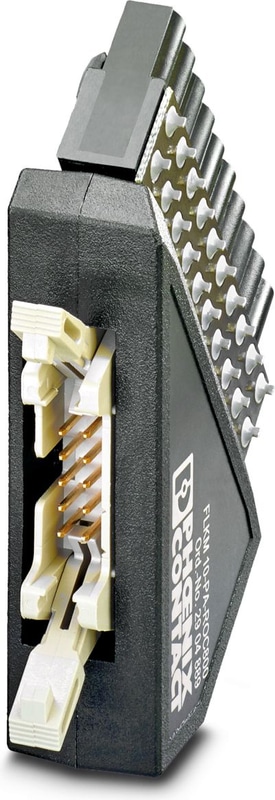

FLKM 10-PA-ROC800 - Front adapter
VARIOFACE front adapters for ROC800 controller
- Interface from field wiring to ROC800 controller
- Design reduces installed wiring times vs discrete field wiring
- Integrated ZB channel allows flexible marking of device
- Preassembled system cables are connected directly to I/O modules using the front adapters
- Intended for use with ten-position ROC800 I/O modules such as: ACIO, AI-12, AI-16, AO, APM, DIDO, PI and RTD
- Front adapter with FLK10 connector
Technical Specifications
Electrical properties
| Max. permissible operating voltage | < 60 V AC/DC |
| Max. permissible current | 1 A (per channel) |
Supported controller EMERSON ROC800
| Suitable I/O card | ROC800:ACIO |
| Suitable I/O card | ROC800:AI-12 |
| Suitable I/O card | ROC800:AI-16 |
| Suitable I/O card | ROC800:AO |
| Suitable I/O card | ROC800:APM |
| Suitable I/O card | ROC800:DIDO |
| Suitable I/O card | ROC800:PI |
| Suitable I/O card | ROC800:RTD |
Connection data
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 10 |
| Pitch | 2.54 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
