PACT MCR-V1-21-44-400-5A-1

Weight

0.174 kg

This product is Not Cancellable/Not Returnable

Series PACT-MCR-V

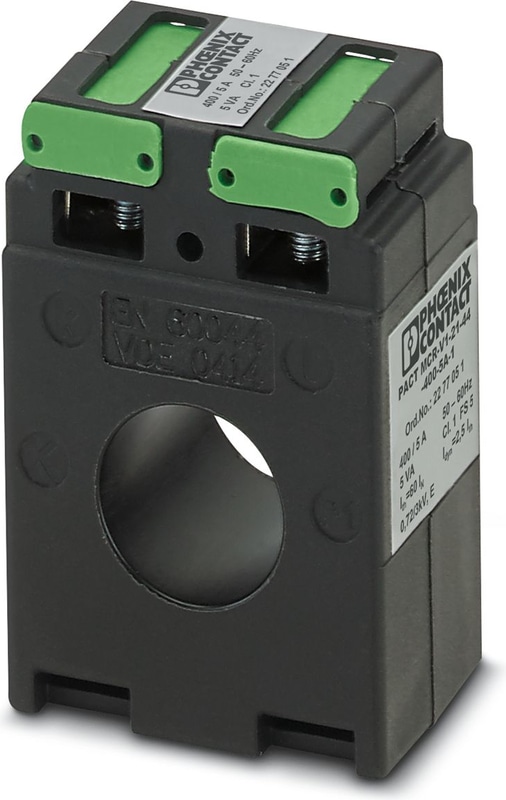

PACT MCR-V1-21-44-400-5A-1 - Current transformer

Bus-bar current transformer, 400 A AC primary current; 5 A AC secondary current; accuracy class 1; 5 VA rated power

Electrical properties

Rated Insulation Voltage

1 kV (Phase/neutral conductor)

General

Can be calibrated	no
Converter type	Bus-bar current transformer

Current transformers

Rated power	5 VA
Thermal rated short-time current	Ith = 60 * In
Thermal rated continuous current	Id = 1.2 * In
Rated surge current	Idyn = 2.5 * Ith
Rated frequency f_n	50 Hz
Rated frequency f_n	60 Hz
Primary rated current I_pn	0 A AC ... 400 A AC
Primary rated current range	1 A AC ... 4000 A AC (depends on type)
Can be calibrated	no
Converter type	Bus-bar current transformer

Signal

Designation	Current output
Secondary rated current I_sn	5 A AC
Surge current limitation factor	FS 5
Accuracy class	1

Connection data

Connection Method	Screw connection
Conductor cross section flexible	2x 2.5 mm² ... 4 mm² (Secondary terminals)

Item dimensions

Width	30 mm
Height	66 mm
Depth	44 mm

Item dimensions with alternative mounting

Width	44 mm
Height	66 mm
Depth	30 mm

Circular conductor

Diameter

21 mm

Material specifications

Color	black (RAL 9005)
Housing Material	PA 6.6

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 40 °C
Ambient temperature (storage/transport)	-25 °C ... 40 °C
Altitude	≤ 1000 m
Permissible humidity (operation)	Use only indoors, non-condensing

CE

Certificate

CE-compliant

UKCA

Certificate

UKCA-compliant

UL, USA/Canada

Identification

XODW8.E323953

UL data

Primary rated current range	50 A AC ... 400 A AC
Primary rated current range	500 A AC ... 800 A AC
Primary rated current range	1000 A AC ... 1600 A AC
Temperature increase	55 °C (At a primary rated current of 50 A AC ... 400 A AC)
Temperature increase	65 °C (At a primary rated current of 500 A AC ... 800 A AC)
Temperature increase	80 °C (At a primary rated current of 1000 A AC ...1600 A AC)
Ambient Temperature (Operation)	-25 °C ... 30 °C (Up to a primary rated current of 1600 A AC)

Standards and Regulations

Standards/regulations

EN 61869

Mounting

Mounting Type

DIN rail mounting
