Official DistributorSKU
MPN
ME PLC 40 BUS 10/10 KIT BK
Weight
0.039 kg
Series ME-PLC

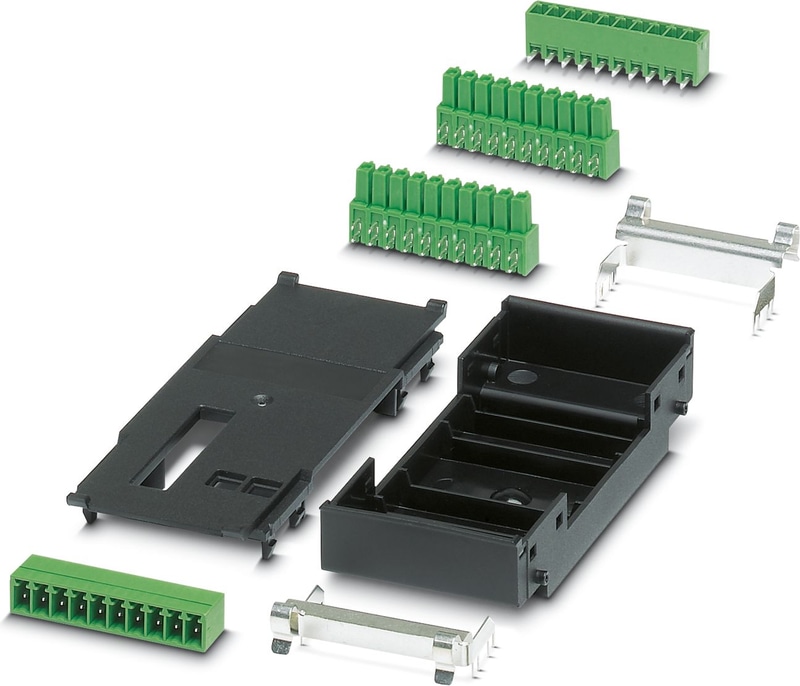

ME PLC 40 BUS 10/10 KIT BK - DIN rail bus connectors
Bus connector set consisting of 2 x 10-pos. connectors, plastic upper part and base, plus metal clamp for mounting on DIN rail, without PCB
- Tool-free mounting
- Available in 40 mm overall width
- Flammability rating V0 in accordance with UL 94
- Variety of connection technology
- Can be mounted on the DIN rail
- With DIN-rail-mountable bus connector and power connector system as an option
Documents
Technical Specifications
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Dimensions
| Width | 39.8 mm |
| Height | 98.4 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
Accessories
ME PLC 40 B BUS 10/10 GY7035 - DIN rail housing, Lower housing part with metal foot catch, for 10/10 bus connector, width: 39.7 mm, height: 180.1 mm, depth: 137.7 mm, color: light grey (similar RAL 7035), cross connection: DIN rail connector (optional), number of positions cross connector: 10
Why Proax for Phoenix Contact 2201503?
Proax is an authorized distributor of Phoenix Contact 2201503 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
