Official DistributorSKU
MPN
ME PLC 40 MT S BK
Weight
0.004 kg
Series ME-PLC

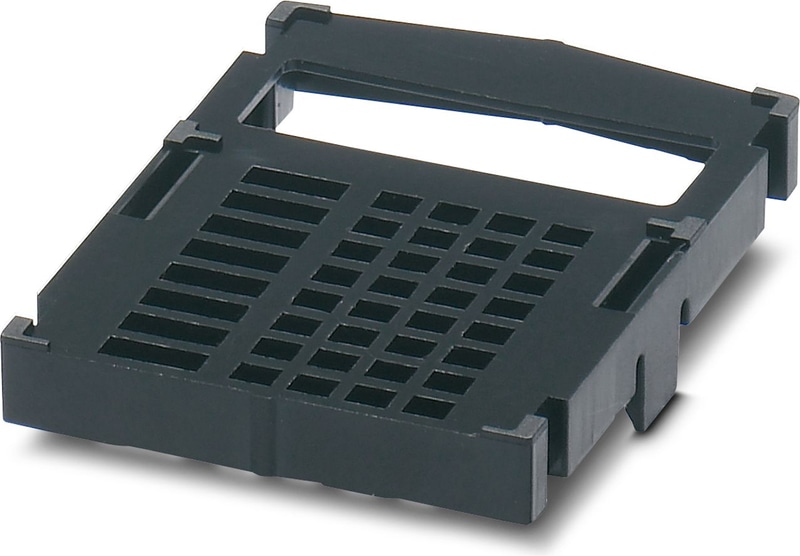

ME PLC 40 MT S BK - Insertion plate
Matrix with defined engagement mechanism, for assembly underneath the cover in short design, color: black
- Easy, tool-free mounting
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | DIN rail housing |
| Housing series | ME PLC |
| Type | Cover |
| Ventilation openings present | no |
Dimensions
| Width | 35.27 mm |
| Height | 47.37 mm |
| Depth | 8.7 mm |
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing Material | Polycarbonate |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
Mounting
| Mounting Type | Clip mounting |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Why Proax for Phoenix Contact 2201496?
Proax is an authorized distributor of Phoenix Contact 2201496 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
