Official DistributorSKU
MPN
ME PLC 40 CS GY7035
Weight
0.008 kg
Series ME-PLC

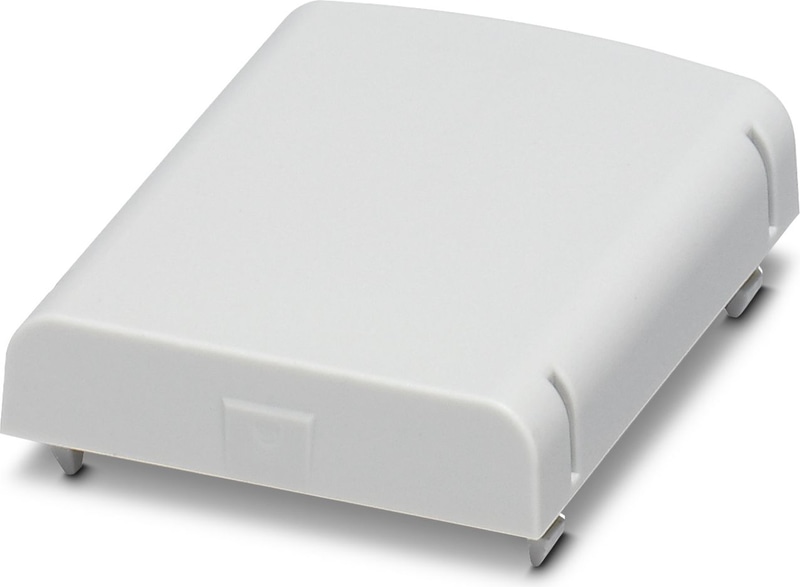

ME PLC 40 CS GY7035 - Housing cover
DIN rail housing, Cover, width: 39.7 mm, height: 51.8 mm, depth: 13.65 mm, color: light grey (similar RAL 7035)
- Tool-free mounting
- Available in 40 mm overall width
- Flammability rating V0 in accordance with UL 94
- Variety of connection technology
- Can be mounted on the DIN rail
- With DIN-rail-mountable bus connector and power connector system as an option
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | DIN rail housing |
| Housing series | ME PLC |
| Type | Cover |
| Ventilation openings present | no |
Dimensions
| Width | 39.7 mm |
| Height | 51.8 mm |
| Depth | 13.65 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 225 |
| Housing Material | Polycarbonate |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
Mounting
| Mounting Type | Latching with lower housing part |
| Mounting Position | Vertical (horizontal DIN rail) |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Accessories
HS LC-H-5X2/ R1XC1 - Single light guide, passive, rigid, can be used for the ME, ME-MAX, ME-IO, ME PLC, and EH housing ranges (housing must be processed)
HS LC-H-D3/ R2XC1-5,08 - Multiple light guides, passive, rigid, can be used for the ME, ME-MAX, ME-IO, ME PLC, and EH housing ranges (housing must be processed)
HS LC-H-D2/ R2XC1-2,54 - Multiple light guides with glare protection, passive, rigid, can be used for the ME, ME-MAX, ME-IO, ME PLC, and EH housing ranges (housing must be processed)
HS LC-H-D2/ R2XC2-2,54 - Multiple light guides with glare protection, passive, rigid, can be used for the ME, ME-MAX, ME-IO, ME PLC, and EH housing ranges (housing must be processed)
HS LC-H-D2/ R2XC5-2,54 - Multiple light guides with glare protection, passive, rigid, can be used for the ME, ME-MAX, ME-IO, ME PLC, and EH housing ranges (housing must be processed)
HS LC-H-D2/ R4XC2-2,54 - Multiple light guides with glare protection, passive, rigid, can be used for the ME, ME-MAX, ME-IO, ME PLC, and EH housing ranges (housing must be processed)
