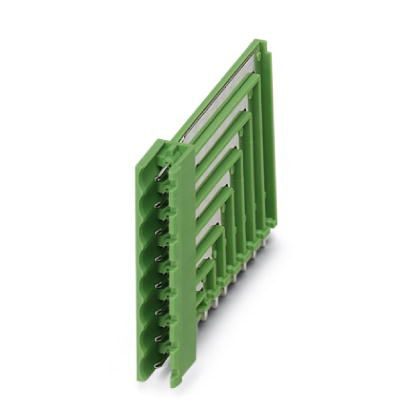

The figure shows an 8-pos. version of the product
Official DistributorSKU
MPN
1847110
Weight
0.002 kg
Series MSTBO
PCB header - MSTBO 2,5/ 3-GR-5,08
PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MSTBO 2,5/..-GR, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.2 mm, number of solder pins per potential: 1, plug-in system: CLASSIC COMBICON, Locking: without, mounting: without, type of packaging: packed in cardboard
- Well-known mounting principle allows worldwide use
- Can be combined with the MSTB 2,5 range
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical Specifications
Item properties
| Brief article description | PCB header |
| Connector system | CLASSIC COMBICON |
| Type of contact | Male connector |
| Range of articles | MSTBO 2,5/..-GR |
| Pitch | 5.08 mm |
| Number of Positions | 3 |
| Mounting Type | Wave soldering |
| Pin layout | Linear pinning |
| Locking | without |
| Number of rows | 1 |
| Number of Connections | 3 |
| Number of potentials | 3 |
Electrical parameters
| Nominal Current | 8 A |
| Nom. voltage | 320 V |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface contact area (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface soldering area (top layer) | Tin (5 - 7 µm Sn) |
Material data - housing
| Housing color | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Caption | Schematische Abbildung - weitere Details siehe Produktfamilienzeichnung im Download Center |
| Length [ l ] | 33.85 mm |
| Width [ w ] | 15.19 mm |
| Height [ h ] | 23.62 mm |
| Pitch | 5.08 mm |
| Height (without solder pin) | 20.42 mm |
| Solder pin [P] | 3.2 mm |
| Pin dimensions | 1.2 x 0.32 mm |
Dimensions for PCB design
| Hole diameter | 1.3 mm |
Packaging information
| Type of packaging | packed in cardboard |
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
General product information
| Type of note | Notes on operation |
| Note | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient Temperature (Operation) | -40 °C ... 100 °C (dependent on the derating curve) |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
1734401 - Coding section, inserted into the recess in the header or the inverted plug, red insulating material
1759981 - Mounting flange, for fixing both ends of the header onto the PCB, green insulating material, with M 2 x 14 screws and nuts.
