Official DistributorSKU
MPN
2200329
Weight
0.002 kg
This product is Not Cancellable/Not Returnable
Series MSTBO

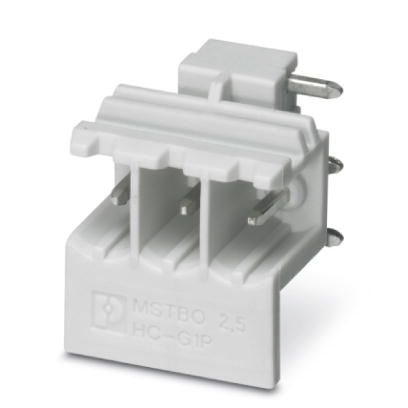

PCB header - MSTBO 2,5/ 3-G1PR GY7035
PCB headers, nominal cross section: 2.5 mm², color: light gray, nominal current: 16 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of rows: 1, number of positions: 3, product range: MSTBO 2,5/..-G1PR, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, Locking: without, type of packaging: packed in cardboard, Product with pin output on right side
- Plug-in direction orthogonal to the PCB
Technical Specifications
Item properties
| Brief article description | PCB header |
| Type of contact | Male connector |
| Range of articles | MSTBO 2,5/..-G1PR |
| Pitch | 5 mm |
| Number of Positions | 3 |
| Mounting Type | Wave soldering |
| Pin layout | Linear pinning |
| Locking | without |
| Number of rows | 1 |
Electrical parameters
| Nominal Current | 16 A |
| Nom. voltage | 320 V |
| Rated voltage (III/3) | 320 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | tin-plated |
Material data - housing
| Housing color | light gray (7035) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Caption | Schematische Abbildung - weitere Details siehe Produktfamilienzeichnung im Download Center |
| Length [ l ] | 15.35 mm |
| Width [ w ] | 14.95 mm |
| Height [ h ] | 16.5 mm |
| Pitch | 5 mm |
| Solder pin [P] | 3.5 mm |
| Pin spacing | 5.00 mm |
| Pin dimensions | 1 x 1 mm |
Dimensions for PCB design
| Hole diameter | 1.4 mm |
| Pin spacing | 5.00 mm |
Packaging information
| Type of packaging | packed in cardboard |
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (dependent on the derating curve) |
| Relative humidity (storage/transport) | 30 % ... 70 % |
Air clearances and creepage distances
| Minimum clearance - inhomogeneous field (III/3) | 3 mm |
| Minimum clearance - inhomogeneous field (III/2) | 3 mm |
| Minimum clearance - inhomogeneous field (II/2) | 3 mm |
| Minimum creepage distance value (III/3) | 4 mm |
| Minimum creepage distance value (III/2) | 1.6 mm |
| Minimum creepage distance value (II/2) | 3.2 mm |
Mechanical test group (A)
| Test specification | IEC 61984 |
| Visual inspection | IEC 60512-1-1:2002-02 |
| Dimension check | IEC 60512-1-2:2002-02 |
| Resistance of inscriptions | IEC 60068-2-70:1995-12 |
| Insertion and withdrawal force | IEC 60512-13-2:2006-02 |
| No. of cycles | 25 |
| Insertion strength per pos. approx. | 8 N |
| Withdraw strength per pos. approx. | 6 N |
| Polarization and coding | IEC 60512-13-5:2006-02 |
| Contact holder in insert | IEC 60512-15-1:2008-05 |
| Test force per pos. | 20 N |
Life cycle test group (B)
| Specification | IEC 60512-9-1:2010-03 |
| Contact resistance R1 | 1.44 mΩ |
| Insertion/withdrawal cycles | 25 |
| Contact resistance R2 | 1.49 mΩ |
| Impulse withstand voltage at sea level | 4.8 kV |
Thermal tests (C)
| Specification | IEC 60512-5-1:2002-02 |
| Number of Positions | 4 |
| Upper limiting temperature requirements <100 °C | Test passed |
Climatic test group (D)
| Specification | ISO 6988:1985-02 |
| Cold stress | -40 °C/2 h |
| Thermal stress | 100 °C/168 h |
| Corrosive stress | 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle |
| Impulse withstand voltage at sea level | 4.8 kV |
| Power-frequency withstand voltage | 2.21 kV |
Degree of protection test group (E)
| Specification | IEC 61984:2008-10 |
| Result, degree of protection, IP code | Finger safety with IP20 test finger |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 - 60.1 Hz) |
| Acceleration | 5g (60.1 - 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
2199618 - Coding section, inserted into the recess in the header or the inverted plug, red insulating material
1759981 - Mounting flange, for fixing both ends of the header onto the PCB, green insulating material, with M 2 x 14 screws and nuts.
