Phoenix Contact 2853750
AllConnectorsTerminal blocksPCB terminal blocks and connectors

2853750

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2853750
MPN
MSTBO 2,5/ 3-G1L KMGY
Weight
0.002 kg
Series MSTBO

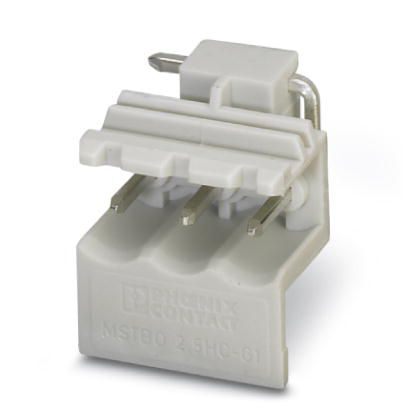

MSTBO 2,5/ 3-G1L KMGY - PCB header

PCB headers, nominal cross section: 2.5 mm2, color: light grey, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MSTBO 2,5/..-G1L, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: packed in cardboard, Product with pin output on left side

  • Plug-in direction orthogonal to the PCB
Technical Specifications

Item properties

Brief article descriptionPCB header
Type of contactMale connector
Range of articlesMSTBO 2,5/..-G1L
Pitch5 mm
Number of Positions3
Mounting TypeWave soldering
Pin layoutLinear pinning
Lockingwithout
Number of rows1
Number of Connections3
Number of potentials3

Electrical parameters

Nominal Current12 A
Nom. voltage250 V
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu alloy
Surface characteristicstin-plated

Material data - housing

Housing colorlight gray (7035)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

CaptionSchematische Abbildung - weitere Details siehe Produktfamilienzeichnung im Download Center
Length [ l ]14.65 mm
Width [ w ]14.95 mm
Height [ h ]16.5 mm
Pitch5 mm
Solder pin [P]3.5 mm
Pin dimensions1 x 1 mm

Dimensions for PCB design

Hole diameter1.4 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Outer packaging typeCarton

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient Temperature (Operation)-40 °C ... 105 °C (dependent on the derating curve)
Relative humidity (storage/transport)30 % ... 70 %

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Minimum clearance - inhomogeneous field (III/3)3 mm
Minimum clearance - inhomogeneous field (III/2)3 mm
Minimum clearance - inhomogeneous field (II/2)3 mm
Minimum creepage distance value (III/3)3.2 mm
Minimum creepage distance value (III/2)1.6 mm
Minimum creepage distance value (II/2)3.2 mm

Current carrying capacity / derating curves

CaptionType: MSTBT 2,5/...-ST with MSTBO 2,5/...-G1L

Mechanical test group (A)

Test specificationIEC 61984
Visual inspectionIEC 60512-1-1:2002-02
Dimension checkIEC 60512-1-2:2002-02
Resistance of inscriptionsIEC 60068-2-70:1995-12
Insertion and withdrawal forceIEC 60512-13-2:2006-02
No. of cycles25
Insertion strength per pos. approx.13 N
Withdraw strength per pos. approx.7 N
Polarization and codingIEC 60512-13-5:2006-02
Contact holder in insertIEC 60512-15-1:2008-05
Test force per pos.20 N

Life cycle test group (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R11.5 mΩ
Insertion/withdrawal cycles25
Contact resistance R21.5 mΩ
Impulse withstand voltage at sea level4.8 kV

Thermal tests (C)

SpecificationIEC 60512-5-1:2002-02
Number of Positions4
Upper limiting temperature requirements <100 °CTest passed

Climatic test group (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level4.8 kV
Power-frequency withstand voltage2.21 kV

Degree of protection test group (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeNo contact safety (IP00) in acc. with IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08

Vibration test

SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 - 60.1 Hz)
Acceleration5g (60.1 - 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
Accessories
  • Phoenix Contact2199618
    2199618
    CR MSTBO-G1 - Coding section, inserted into the recess in the header or the inverted plug, red insulating material
  • Phoenix Contact1759981
    1759981
    MSTB-BF - Mounting flange, for fixing both ends of the header onto the PCB, green insulating material, with M 2 x 14 screws and nuts.
  • Phoenix Contact1755477
    1755477
    MSTB-BL - Keying cap, for forming sections, plugs onto header pin, green insulating material
