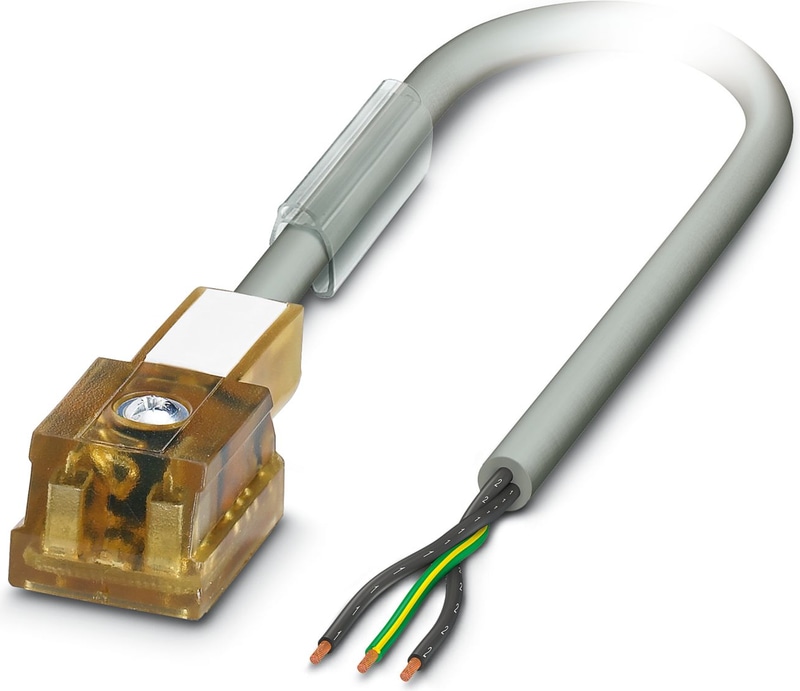

SAC-3P- 1,5-PUR/BI-1L-S F - Sensor/actuator cable
Sensor/actuator cable, 3-position, PUR/PVC, gray RAL 7001, free cable end, on Valve connector BI (11 mm), with 1 LED, Wiring: Z diode, cable length: 1.5 m
- Easy and safe: 100 % electrically tested plug-in components
- Convenient: increased machine availability thanks to quick and easy diagnostics
- Compact: flat design for applications where space is at a premium
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Application | Standard |
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | TPU |
| Material housing valve plug | PBT |
| Contact Material | CuSn |
| Valve plug contact insert material | PBT |
| Contact surface material | Ag |
| Outer sheath, material | PUR |
| Conductor material | Bare Cu litz wires |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 24 V AC |
| Nominal voltage UN | 24 V DC |
| Nominal current IN | 3 A |
Valve connector characteristics
| Fixing screws | M3 x 29 |
Signaling
| Status display | 1 LED |
| Status display present | Yes |
Connection 1
| Type | free cable end |
Connection 2
| Type | Valve connector BI (11 mm) |
| Number of Positions | 3 |
| Material | CuSn (Contact) |
| Material | Ag (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
Cable/line
| Cable Length | 1.5 m |
PUR/PVC gray [100]
| Number of Positions | 3 |
| Shielded | no |
| Cable Type | PUR/PVC gray [100] |
| Conductor structure signal line | 24x 0.20 mm |
| AWG Signal Line | 18 |
| Conductor Cross Section | 3x 0.75 mm² (Signal line) |
| Wire diameter incl. insulation | approx. 1.8 mm (Signal line) |
| External Cable Diameter | 5.20 mm |
| Outer sheath, material | PUR |
| External sheath, color | gray RAL 7001 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | black 1, black 2, green/yellow |
| Thickness, insulation | approx. 0.34 mm (Core insulation) |
| Thickness, insulation | approx. 0.30 mm (Inner sheath) |
| Thickness, insulation | approx. 0.35 mm (Outer cable sheath) |
| Overall twist | 3 concentrically twisted wires |
| Length of twist, overall twist | 83 mm |
| Insulation resistance | ≥ 1 MΩ*km |
| Nominal voltage, cable | 240 V |
| Test voltage | 2000 V |
| Smallest bending radius, fixed installation | 63 mm |
| Smallest bending radius, movable installation | 63 mm |
| Max. bending cycles | 2000000 |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 80 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (valve plug) |
| Ambient Temperature (Operation) | -30 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 70 °C (Cable, flexible installation) |
Accessories
CUTFOX-S VDE - Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested
WP-PA HF 13,0 BK - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V0, inner diameter: 10 mm, Total length: 50 m
WP-PA HF-HB 13,0 BK - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: HB, inner diameter: 10 mm, Total length: 50 m
