OT3200E03
Official DistributorBy ABB
SKU
ABBOT3200E03
MPN
1SCA128480R1001
Weight
31.8 kg
This item is ineligible for free shipping due to its size/weight.

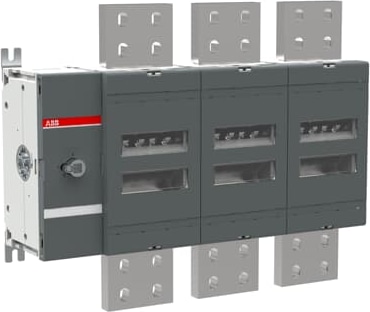

3-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC301124M0201 |
| Environmental Information | 1SCC301269D0201 |
| Environmental Product Declaration - EPD | 1SCC301308D0201 |
Dimensions
| Product Net Width | 514 mm |
| Product Net Height | 410 mm |
| Product Net Depth / Length | 146 mm |
| Product Net Weight | 31.8 kg |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 5000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 3200 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 50 … 75 N·m |
Technical UL/CSA
| Tightening torque | acc. IEC 60947-1 50 … 75 N·m |
