OS1250D12P
Official DistributorBy ABB
SKU
ABBOS1250D12P
MPN
1SCA105246R1001
Weight
27.86 kg
This item is ineligible for free shipping due to its size/weight.

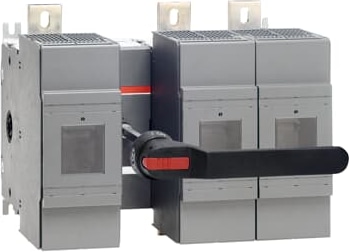

Switch-disconnector fuse, 1250A, 3-pole, DIN 4, front operated, handle and shaft included.
Technical Specifications
ABB EcoSolutions
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311203D0201 |
Dimensions
| Product Net Width | 432 mm |
| Product Net Height | 356 mm |
| Product Net Depth / Length | 371 mm |
| Product Net Weight | 27.86 kg |
| Product Net Weight | 61.42 lb |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH4 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 75 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-21A (Ie) | (500 V) 1250 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 1250 A |
| Rated Operational Current AC-21B (Ie) | (500 V) 1250 A |
| Rated Operational Current AC-21B (Ie) | (690 V) 1250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-22B (Ie) | (500 V) 1250 A |
| Rated Operational Current AC-22B (Ie) | (690 V) 1250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Current AC-23B (Ie) | (500 V) 1000 A |
| Rated Operational Current AC-23B (Ie) | (690 V) 1000 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 315 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 560 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 560 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 710 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 1000 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 40 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 50 mm |
| Tightening torque | 50 ... 75 N·m |
Technical UL/CSA
| Tightening torque | 50 ... 75 N·m |
