OS100GJ02P
Official DistributorBy ABB
SKU
ABBOS100GJ02P
MPN
1SCA121933R1001
Weight
1.5 kg

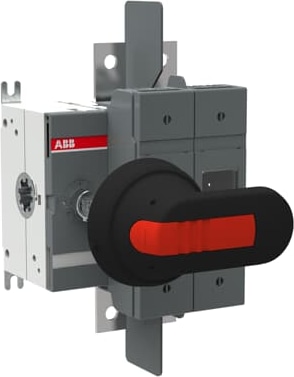

Fusible disconnect switch, 100A, 2-pole, class J, front operated, handle and shaft included.
Technical Specifications
ABB EcoSolutions
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
Dimensions
| Product Net Width | 105 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 220 mm |
| Product Net Weight | 1.5 kg |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 100 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 100 A |
| Fuse System | Class J |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating mode | Front |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 75 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 75 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 90 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 132 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | UL98 |
| Terminal Type | Lug terminals |
| Tightening torque | 15 ... 22 N·m |
Technical UL/CSA
| Ampere Rating | 100 A |
| Tightening torque | 15 ... 22 N·m |
