OS100GB03
Official DistributorBy ABB
SKU
ABBOS100GB03
MPN
1SCA116975R1001
Weight
1.835 kg

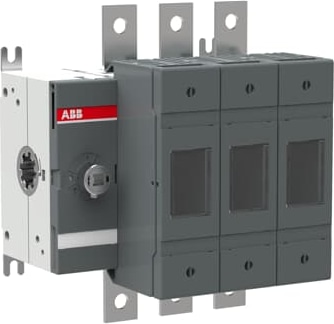

Switch-disconnector fuse, 100A, 3-pole, British Standard A2/A3/A4, front operated.
Technical Specifications
ABB EcoSolutions
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
Dimensions
| Product Net Width | 147 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 115 mm |
| Product Net Weight | 1.835 kg |
| Product Net Weight | 4.05 lb |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 100 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 100 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | A2-A4 |
| Fuse System | British Standard |
| Handle Type | Handle not included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 100 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 100 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 100 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 100 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 30 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 55 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 55 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 55 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 90 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening torque | 15 … 22 N·m |
Technical UL/CSA
| Tightening torque | 15 … 22 N·m |
