OS100GJ22F
Official DistributorBy ABB
SKU
ABBOS100GJ22F
MPN
1SCA115668R1001
Weight
2.39 kg

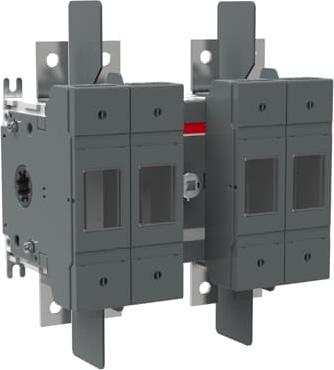

Fusible disconnect switch, 100A, 4-pole, class J, front operated, switched fusible fourth pole.
Technical Specifications
ABB EcoSolutions
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
Dimensions
| Product Net Width | 183 mm |
| Product Net Height | 220 mm |
| Product Net Depth / Length | 104.5 mm |
| Product Net Weight | 2.39 kg |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | 100 A |
| Fuse System | Class J |
| Handle Type | Handle not included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 100 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 100 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 100 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 100 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 75 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 75 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 90 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 132 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | UL98 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening torque | 15 ... 22 N·m |
Technical UL/CSA
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 30 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 60 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 75 Hp |
| Tightening torque | 15 ... 22 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 120 in·lb |
| Tightening Torque UL/CSA | Cable Lug 50 in·lb |
