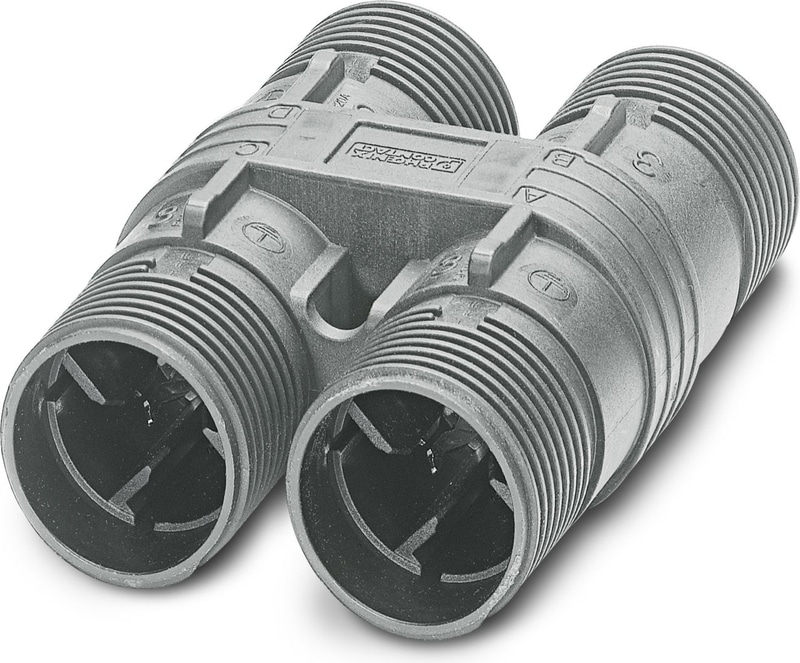

Phoenix Contact 1582260

1582260

Official Distributor

By Phoenix Contact

SKU
PHX1582260
MPN
QPD H 4X2,5 GY
Weight
0.082 kg
Series QPD-H

QPD H 4X2,5 GY - H distributor

H distributor, product family: QPD, connection method: IDC connection/ QUICKON fast connection, number of positions: 4, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, gray, without QUICKON nut, coding: Coding profile, external cable diameter: 6 mm ... 14 mm

Technical Specifications

Product properties

Product familyQPD
TypeH-distributor
Number of Positions4
Connection profile4
Position marking1, 2, 3, 4
Number of Connections4
No. of cable outlets4
CodingCoding profile

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Connection technology

Connection MethodIDC connection
Connection MethodQUICKON fast connection
Frequency of connections between conductors of the same cross sectionmax. 10

Conductor connection

Conductor cross section flexibel1 mm² ... 2.5 mm²
Conductor cross section solid1 mm² ... 2.5 mm²
Connection cross section AWG16 ... 14
Tightening torque Union nut5 Nm
Wrench size Union nut22 mm

Dimensions

Width59.7 mm
Height32.2 mm
Length76.6 mm
Wrench size22 mm
Wrench size for mounting22 mm

Electrical properties

Rated surge voltage (II/2)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (III/3)6 kV
Rated current20 A
Contact resistance< 3 mΩ
Rated voltage (II/2)1000 V
Rated voltage (III/2)1000 V
Rated voltage (III/3)690 V
Nominal voltage UN690 V
Nominal current IN20 A

Mechanical data

Insertion/withdrawal cyclesmax. 50

Material specifications

Material HousingPA
Material ContactCuZn
Material Contact surfacetin-plated
Flammability rating according to UL 94V0
Material wire insulationPVC/PE/TPE/rubber

Cable/line

Structure of individual litz in acc. with VDE 0295 / smallest wire diameterVDE 0295 class 1 to 6/min. 0.15 mm
External Cable Diameter6 mm ... 14 mm (Order Quickon nuts or Quickon connectors separately)
Wire diameter including insulation2 mm ... 3.8 mm
Position marking1, 2, 3, 4
Material wire insulationPVC / PE

Ambient conditions

Degree of ProtectionIP66
Degree of ProtectionIP68 (2 m / 24 h)
Degree of ProtectionDistance from the nozzle 150 mm
Ambient Temperature (Operation)-40 °C ... 100 °C
Temperature when conductor connected-5 °C ... 50 °C
Ambient temperature (storage/transport)-40 °C ... 100 °C
Accessories
  • 1582235
    1582235
    QPD CLIP 2,5 BK, Holding clip for Quickon-H distributor, for snapping on and removal without tools.
  • 0806932
    0806932
    0806932 -
  • 1670206
    1670206
    Socket wrench - QSS 22
  • 1582488
    1582488
    QPD QSK 2,5 FS, Plastic protective cap, for QPD-QUICKON connectors, green, with holding band, IP68
  • 1582459
    1582459
    CP-QPD - Coding profile red, for pushing into the QUICKON dome and connector, can be positioned in 90° steps.
  • 1582372
    1582372
    QPD P 4X2,5 6-10 GY - Connector, product family: QPD, connection method: IDC connection, number of positions: 4, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, gray, external cable diameter: 6 mm ... 10 mm
  • 1582379
    1582379
    QPD P 4X2,5 9-14 GY, Connector, QUICKON connection, number of positions: 4, 1 mm² ... 2.5 mm², 690 V, 20 A, gray, cable diameter range: 9 mm ... 14 mm
