This product has been discontinued

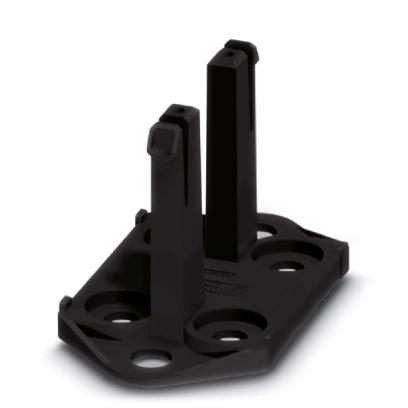

Assembly clip QPD CLIP 2,5 BK
Holding clip for Quickon-H distributor, for snapping on and removal without tools.
Technical Specifications
General
| Type | QPD 4x2,5 |
| Color | black |
| Locking Type | Screw locking |
| Connection Method | QUICKON connection |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
Material data
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 1582235?
Proax is an authorized distributor of Phoenix Contact 1582235 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
