1582229
Official DistributorSKU
PHX1582229
This product has been discontinued

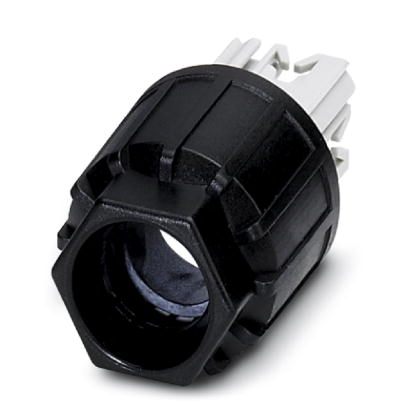

Nut QPD N 2,5 9-14 BK
Nut, QUICKON connection, number of positions: 3+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, cable diameter range: 9 mm ... 14 mm
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Convenient: quick and easy assembly without special tools
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Technical Specifications
General
| Type | QPD 4x2,5 |
| Color | black |
| Locking Type | Screw locking |
| Connection Method | QUICKON connection |
| Connection Method | IDC connection |
| Number of Positions | 4 |
| Note number of positions | 3+PE |
| Wrench size, union nut | 22 mm |
| Tightening torque, union nut | 5 Nm |
| Number of Connections | 10 |
| Conductor cross section flexible min. | 1 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 1 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 16 |
| Conductor cross section AWG max. | 14 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire insulation material | PVC/PE/TPE/rubber |
| Wire diameter including insulation | 2 mm ... 3.8 mm |
| External Cable Diameter | 9 mm ... 14 mm |
| Position marking | 1, 2, 3, PE |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (2 m / 24 h) |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
Electrical characteristics
| Nominal current IN | 20 A |
| Rated current | 20 A |
| Rated voltage (III/3) | 690 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 8 kV |
Mechanical characteristics
| QUICKON connectability | max. 10 |
| Category of shock impact | IK07 |
Material data
| Contact carrier material | PA |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Overvoltage category | III |
| Degree of pollution | 3 |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
QPD QSK 2,5 FS, Plastic protective cap, for QPD-QUICKON connectors, green, with holding band, IP68
CP-QPD - Coding profile red, for pushing into the QUICKON dome and connector, can be positioned in 90° steps.
Connector, QUICKON connection, number of positions: 3+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, cable diameter range: 6 mm ... 10 mm- Connector, QUICKON connection, number of positions: 3+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, cable diameter range: 9 mm ... 14 mm
QPD N 2,5 6-10 BK, Nut, QUICKON connection, number of positions: 3+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, cable diameter range: 6 mm ... 10 mm
QPD N 2,5 9-14 BK, Nut, QUICKON connection, number of positions: 3+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, cable diameter range: 9 mm ... 14 mm
