Official DistributorSKU
MPN
GPE 13X 9 WH
Weight
0.018 kg
Series GPE
GPE 13X 9 WH - Engraving material
- Can be labeled easily using the CMS‑P1‑PLOTTER
- Can be engraved using the P1 ENGRAVING UNIT
- Labeling service: Phoenix Contact can custom-label all GPE ... markers according to your requirements
- The adhesive foil used ensures good adhesive properties, even on uneven surfaces
- Two-layer material

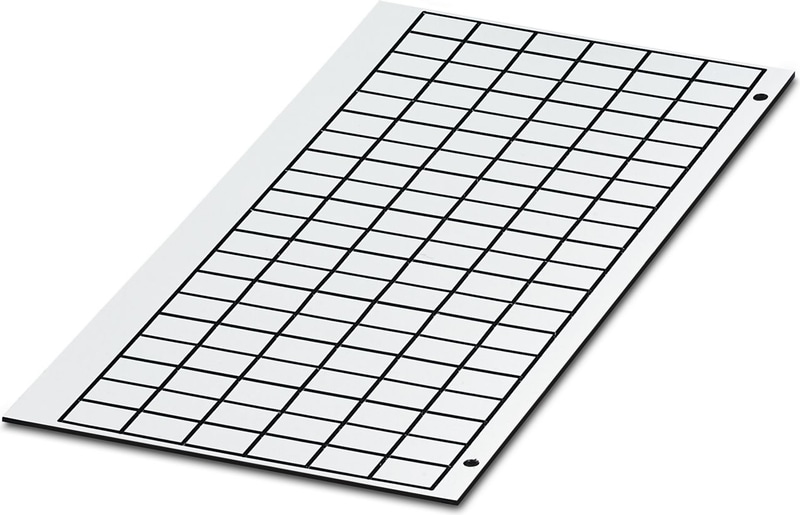

- The label sheet consists of prefabricated, individual self-adhesive labels
Technical Specifications
Marking
| Number of individual labels | 120 |
| Number of individual labels per row | 6 |
Mounting
| Mounting Type | adhesive |
Material specifications
| Adhesive strength | 50 µm |
| Adhesive | Acrylic |
| Color | white |
| Material | TRANSPLY-ABS |
| Components | free from silicone and halogen |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 85 °C |
| Recommended storage conditions | 20°C/50% relative humidity. Storage in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 20 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 12 months |
Dimensions
| Width | 13 mm |
| Height | 9 mm |
| Length | 9 mm |
| Material strength | 0.80 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Notes
| General | Can be labeled with CMS |
Why Proax for Phoenix Contact 0806932?
Proax is an authorized distributor of Phoenix Contact 0806932 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
