Phoenix Contact 1569618
AllConnectorsCircular connectors

1569618

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1569618
MPN
SACC-DSI-MSB-4CON-L180 SCO
Weight
0.013 kg

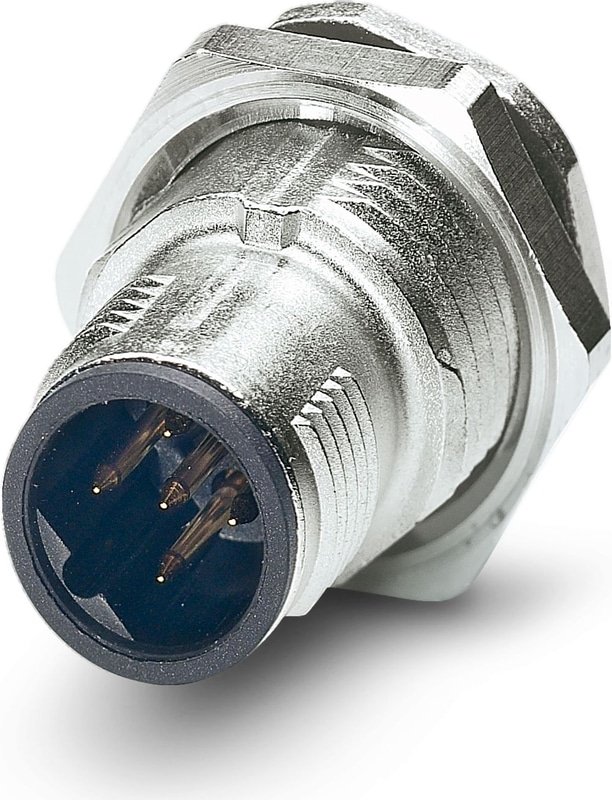

SACC-DSI-MSB-4CON-L180 SCO - Device connector rear mounting

Device connector rear mounting, 4-position, Pin, straight, M12-SPEEDCON, coding: B, Rear mounting, Pg9, Solder pins, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240087

Technical Specifications

Notes

Order information:Lock nut is included in the scope of delivery

Mounting

Mounting TypeRear mounting Pg9 With locking nut
Assembly instructionsWith locking nut

Product properties

Number of Positions4
Shieldedno
CodingB
Thread typeM12

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Dimensions

Length of the solder pin6 mm
Length of the solder pin6 mm

Material specifications

Flammability rating according to UL 94V0
Seal materialNBR
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionBrass, nickel-plated

Electrical properties

Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN60 V
Nominal current IN4 A

Conductor connection

Connection MethodSolder pins
Contact connection typePin

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingB

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)

Why Proax for Phoenix Contact 1569618?

Proax is an authorized distributor of Phoenix Contact 1569618 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size20
