Phoenix Contact 1456514
AllConnectorsCircular connectors

1456514

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1456514
MPN
SACC-DSI-MSD-4CON-L180/SH TQ
Weight
0.014 kg

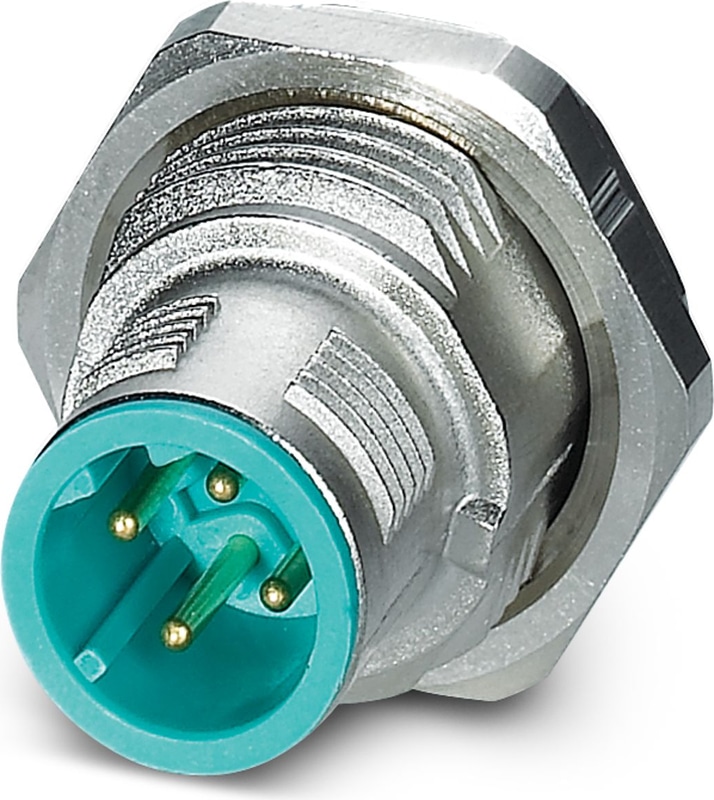

SACC-DSI-MSD-4CON-L180/SH TQ - Device connector rear mounting

Device connector rear mounting, Ethernet CAT5 (100 Mbps), 4-position, Pin, straight, M12-SPEEDCON, coding: D, Rear mounting, M16 x 1.5, Wave soldering, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239816

  • Easy PCB assembly: one-piece connectors for wave soldering
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission reliability: optional shield connection to the housing by means of shield contact
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:Lock nut is included in the scope of delivery

Mounting

Mounting TypeRear mounting M16 x 1.5 With flat nut
Assembly instructionsWith flat nut

Product properties

ApplicationData
Sensor TypeEthernet
Number of Positions4
Shieldedyes
CodingD
Thread typeM12

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Dimensions

Length of the solder pin6 mm
Length of the solder pin6 mm

Material specifications

Flammability rating according to UL 94V0
Seal materialNBR
Contact MaterialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated

Electrical properties

Rated surge voltage2.5 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
Nominal voltage UN60 V DC
Nominal current IN4 A
Transmission characteristics (category)CAT5 (IEC 11801:2002)

Conductor connection

Connection MethodWave soldering
Contact connection typePin
Tightening torque3 Nm ... 4 Nm (Installation-side)

Mechanical data

Insertion/withdrawal cycles≥ 100

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingD

Cable/line

Signal type/categoryEthernet CAT5, 100 Mbps
Wire diameter incl. insulation1 mm

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-40 °C ... 70 °C (Plug / socket)
Ambient Temperature (Operation)-50 °C ... 70 °C (Cable, flexible installation)
Ambient Temperature (Operation)-20 °C ... 60 °C (cable, fixed installation)

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

Why Proax for Phoenix Contact 1456514?

Proax is an authorized distributor of Phoenix Contact 1456514 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size20
