1516250
Official DistributorSKU
PHX1516250
Weight
0.223 kg
This product is Not Cancellable/Not Returnable
This product has been discontinued

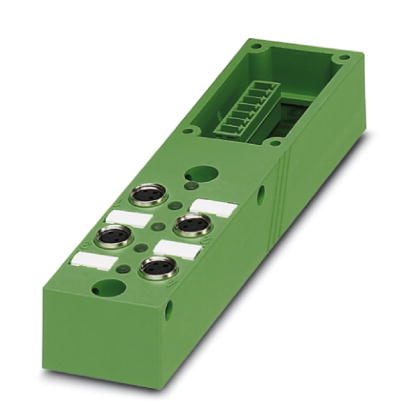

Sensor/actuator box header SACB- 4/3-L-C-M8 GG
Sensor/actuator box header, application: Standard, connection method: M8 socket Metal, number of slots: 4, number of positions: 3, coding: A - standard, slot assignment: single, status display: yes, pnp; master cable connection: Pluggable screw connection, shielding: no
Technical Specifications
General
| Rated voltage | 24 V DC |
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 2 A |
| Total rated current | 8 A |
| Number of Positions | 3 |
| Number of slots | 4 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M8 socket |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -30 °C ... 80 °C |
Local diagnostics function
| Local diagnostics | Supply voltage Green LED |
| Local diagnostics | Status display I/O Yellow LED |
Master cable data/connection data
| Connection Method | Pluggable screw connection |
| Tightening torque slot sensor/actuator cable | 0.2 Nm |
Insulation material
| Housing Material | PBT |
| Material of the moulding mass | PUR |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA |
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Gold-plated |
| Material of the contact carrier on the master cable side | PA 6.6 V0 |
| Material of threaded sleeve | Cu alloy |
| Material of threaded sleeve surface | Nickel-plated |
| O-ring material | NBR |
Standards and Regulations
| Standard designation | M8 connector |
| Standards/regulations | IEC 61076-2-104 |
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | V0 |
Accessories
PROT-M8 - An M8 screw plug for the unoccupied M8 sockets of the sensor/actuator cable, boxes and flush-type connectors
