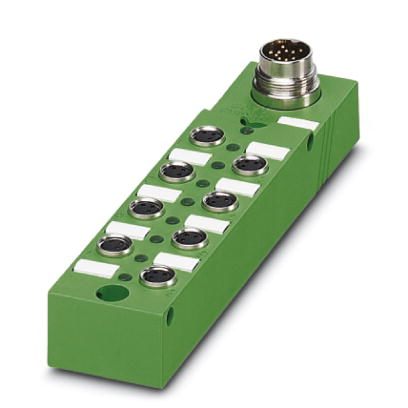

Sensor/actuator box SACB- 8/3-L-M16-M8
Sensor/actuator box, application: Standard, connection method: M8 socket Metal, number of slots: 8, number of positions: 3, coding: A - standard, slot assignment: single, status display: yes, pnp; master cable connection: M16 plug connection 90°, shielding: no
- Safety in the field, thanks to molded housing and high degree of protection
- Flexible, distributed bundling of signals in one master cable
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical Specifications
General
| Rated voltage | 24 V DC |
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 2 A |
| Total rated current | 6 A |
| Number of Positions | 3 |
| Number of slots | 8 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M8 socket |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -30 °C ... 80 °C |
| Ambient Temperature (Operation) | |
| Ambient Temperature (Operation) |
Local diagnostics function
| Local diagnostics | Supply voltage per module Green LED |
| Local diagnostics | Status display I/O Yellow LED |
Master cable data/connection data
| Connection Method | M16 plug connection |
| Tightening torque - master cable - plug connection | 1.5 Nm |
| Tightening torque slot sensor/actuator cable | 0.2 Nm |
Insulation material
| Housing Material | PBT |
| Material of the moulding mass | PUR |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA |
| Material of contact, master cable side | CU alloy |
| Material of threaded sleeve | Cu alloy |
| Material of threaded sleeve surface | Nickel-plated |
| O-ring material | NBR |
Standards and Regulations
| Standard designation | M8 connector |
| Standards/regulations | IEC 61076-2-104 |
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
SAC-12P- 5,0-PUR/M16FR - Master cable, application: Sensor/actuator box, connection method: M8 socket Metal, number of slots: 8, number of positions: 12, slot assignment: single, status display: No; master cable connection: M16 plug connection, PUR/PVC, cable length: 5 m, shielding: no, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1260747- SAC-12P-10,0-PUR/M16FR - Master cable, application: Sensor/actuator box, connection method: M8 socket, number of slots: 8, number of positions: 12, slot assignment: single, status display: No; master cable connection: M16 plug connection, PUR/PVC, cable length: 10 m, shielding: no, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1260746
PROT-M8 - An M8 screw plug for the unoccupied M8 sockets of the sensor/actuator cable, boxes and flush-type connectors
SACC-M16FS-14CON-M - M16 socket, 14-pos., with solder connection, freely configurable, straight, for a 6.0 mm conductor diameter ... 8.0 mm
