SAC- 5,0/0,15-116/2XA-1L-Z
Weight
0.374 kg

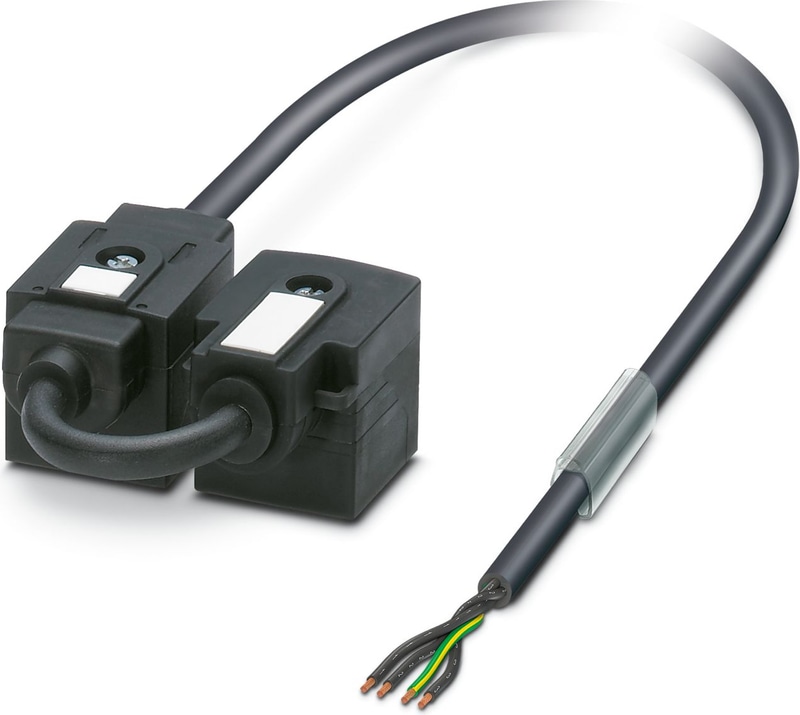

SAC- 5,0/0,15-116/2XA-1L-Z - Double valve connector cable
Double valve connector cable, 4-position, PUR/PVC, black, free cable end, on Valve connector A, with 1 LED, Wiring: Z diode and Valve connector A, with 1 LED, Wiring: Z diode, cable length: 5 m, valve connector spacing: 0.15 m
- Easy and safe: 100 % electrically tested plug-in components
- Efficient: control valves with two connections via a single connecting cable
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical Specifications
Product properties
| Application | Standard |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | no |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | TPU |
| Material housing valve plug | TPU |
| Contact Material | CuSn |
| Valve plug contact insert material | PA 6.6 |
| Contact surface material | Sn |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 24 V AC |
| Nominal voltage UN | 24 V DC |
| Nominal current IN | 4 A |
Valve connector characteristics
| Fixing screws | M3 x 29 |
| Pulse power | 40 W (at 100 µs square-wave pulse) |
| Terminal voltage | 70 V (at 2 mA constant current) |
| Reverse voltage | 50 V |
Mechanical data
| Insertion/withdrawal cycles | 50 |
Signaling
| Status display | 1 LED |
| Status display present | Yes |
Connection 1
| Type | free cable end |
Connection 2
| Type | Valve connector A |
| Material | CuSn (Contact) |
| Material | Sn (Contact surface) |
| Material | PA 6.6 (Contact carriers) |
| Material | TPU (Housing) |
Connection 3
| Type | Valve connector A |
| Material | CuSn (Contact) |
| Material | Sn (Contact surface) |
| Material | PA 6.6 (Contact carriers) |
| Material | TPU (Housing) |
Cable/line
| Cable Length | 5 m |
| Cable Length | 0.15 m |
PUR/PVC, 0.75 mm², black [116]
| Cable weight | 57 kg/km |
| UL AWM style | 20549 |
| Number of Positions | 4 |
| Shielded | no |
| Cable Type | PUR/PVC, 0.75 mm², black [116] |
| Conductor structure signal line | 24x 0.20 mm |
| AWG Signal Line | 18 |
| Conductor Cross Section | 4x 0.75 mm² |
| Wire diameter incl. insulation | 1.7 mm ±0.05 mm |
| External Cable Diameter | 6.30 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | black |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | black 1, black 2, black 3, green/yellow |
| Overall twist | 4 wires, twisted |
| Max. conductor resistance | 26 Ω/km (at 20 °C) |
| Insulation resistance | ≥ 20 MΩ*km |
| Nominal voltage, cable | 300 V |
| Test voltage | 1200 V |
| Smallest bending radius, fixed installation | 63 mm |
| Flame resistance | according to DIN VDE 0482 |
| Flame resistance | According to DIN EN 50265-2-1 |
| Flame resistance | in acc. with UL FT-2 |
| Ambient Temperature (Operation) | -5 °C ... 80 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (valve plug) |
Valve connector
| Standard designation | Valve connector |
| Standards/specifications | EN 175301-803 |
Accessories
CUTFOX-S VDE - Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested
WP-PA HF 13,0 BK - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V0, inner diameter: 10 mm, Total length: 50 m
WP-PA HF-HB 13,0 BK - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: HB, inner diameter: 10 mm, Total length: 50 m
