Phoenix Contact 1440119
AllConnectorsDevice connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
SACC-E-M 8MS-5CON-M 8/0,5 DN
Weight
0.014 kg
Series SACC-E-M

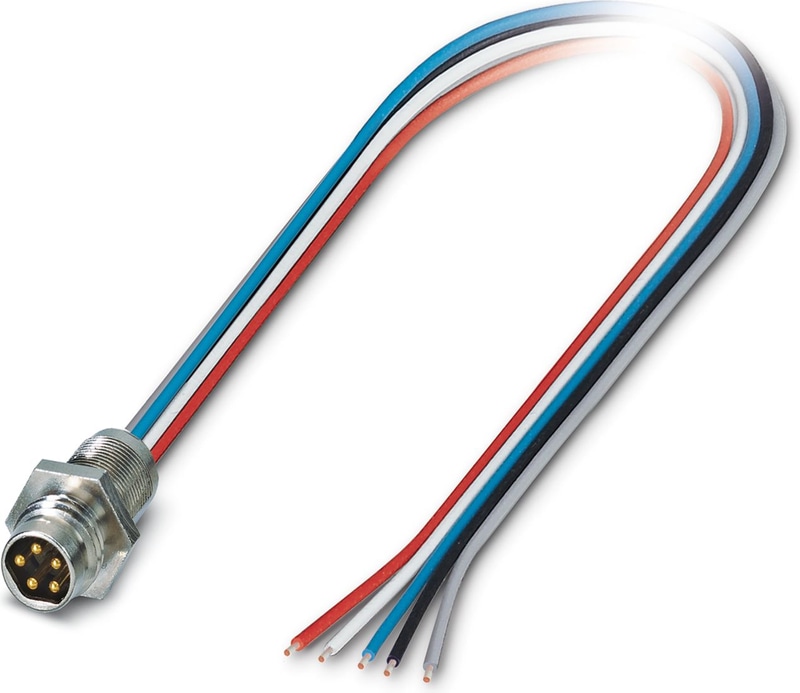

SACC-E-M 8MS-5CON-M 8/0,5 DN - Device connector front mounting

Device connector front mounting, DeviceNet™, 5-position, Pin, straight, M8, Front mounting, M8 x 0.5, Individual wires, cable length: 0.5 m, 0.25 mm2, PVC litz wire

  • Preassembled with litz wires for immediate use
  • Customer-specific assemblies and litz wire lengths available
  • Sealed on the litz wire side for optimum leak-tightness
  • Standard pin assignments and codings for signal transmission with a uniform design-in design
Technical Specifications

Mounting

Mounting TypeFront mounting M8 x 0.5

Product properties

Sensor TypeDeviceNet™
Number of Positions5
No. of cable outlets1
Shieldedno
CodingB
Thread typeM8

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Material specifications

Flammability rating according to UL 94HB
Seal materialViton
Contact MaterialCu alloy
Contact surface materialAu
Contact carrier materialPUR/PA 6.6
Material for screw connectionBrass, nickel-plated
Conductor materialTin-plated Cu litz wires

Electrical properties

Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V AC
Nominal voltage UN30 V DC
Nominal current IN4 A

Conductor connection

Connection MethodIndividual wires
Contact connection typePin
Conductor Cross Section0.25 mm²

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM8

Cable/line

Cable Length0.5 m
Cable TypePVC litz wire
Signal type/categoryDeviceNet™
Single wire, colorgray, red, white, black, blue
Cable cross section0.25 mm²
Conductor materialTin-plated Cu litz wires
AWG Signal Line26
Material wire insulationPVC
Ambient Temperature (Operation)-40 °C ... 85 °C

Ambient conditions

Degree of ProtectionIP67
Degree of ProtectionIP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C

M8

Standard designationM8 connector
Standards/specificationsIEC 61076-2-104
Accessories
  • Phoenix Contact1504071
    1504071
    SACC-E-MU-M8X0,5 - Flat nut, Screw mounting, M8 x 0.5, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Why Proax for Phoenix Contact 1440119?

Proax is an authorized distributor of Phoenix Contact 1440119 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size1
