1440106
Official DistributorSKU
PHX1440106
MPN
SACC-E-M 8FS-5CON-M 8/0,5 DN
Weight
0.015 kg
Series SACC-E-M

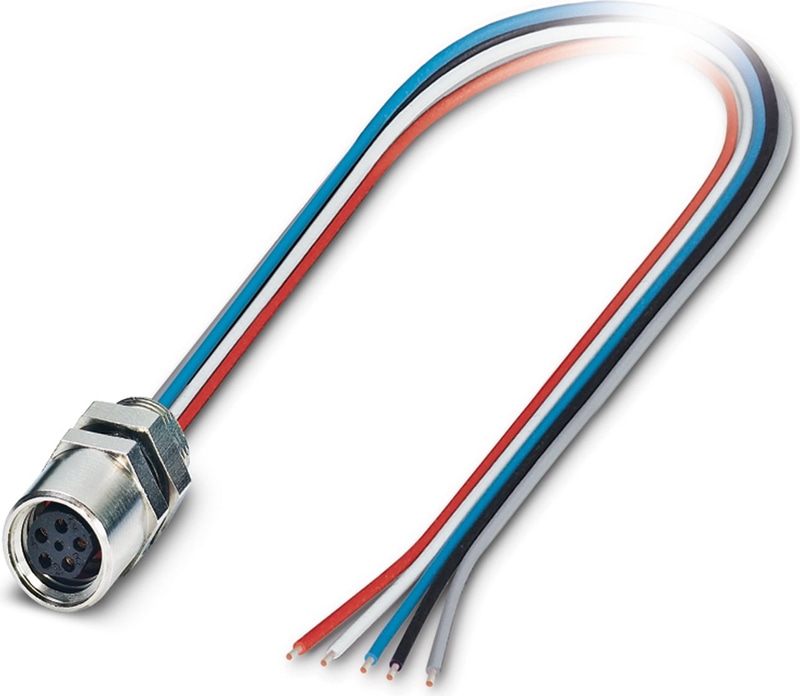

SACC-E-M 8FS-5CON-M 8/0,5 DN - Device connector front mounting
Device connector front mounting, DeviceNet™, 5-position, Socket, straight, M8, coding: B, Front mounting, M8 x 0.5, Individual wires, cable length: 0.5 m, 0.25 mm2, PVC litz wire
Technical Specifications
Mounting
| Mounting Type | Front mounting M8 x 0.5 |
Product properties
| Sensor Type | DeviceNet™ |
| Number of Positions | 5 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | B |
| Thread type | M8 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | Viton |
| Contact Material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PUR/PA 6.6 |
| Material for screw connection | Brass, nickel-plated |
| Conductor material | Tin-plated Cu litz wires |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V |
| Nominal current IN | 4 A |
Conductor connection
| Connection Method | Individual wires |
| Contact connection type | Socket |
| Conductor Cross Section | 0.25 mm² |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M8 |
| Coding | B |
Cable/line
| Cable Length | 0.5 m |
| Cable Type | PVC litz wire |
| Signal type/category | DeviceNet™ |
| Single wire, color | white, black, gray, red, blue |
| Cable cross section | 0.25 mm² |
| Conductor material | Tin-plated Cu litz wires |
| AWG Signal Line | 26 |
| Material wire insulation | PVC |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
Standards and Regulations
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
Why Proax for Phoenix Contact 1440106?
Proax is an authorized distributor of Phoenix Contact 1440106 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
