MBK 5/E-FS

Weight

0.005 kg

This product is Not Cancellable/Not Returnable

Series MBK

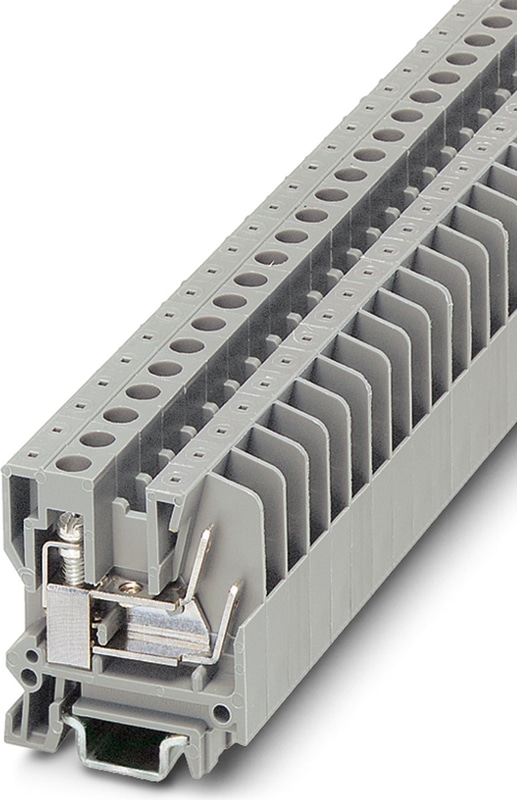

MBK 5/E-FS - Mini feed-through terminal block

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 16 A, 1st level connection left, connection method: Screw/plug-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting: NS 15, color: gray

This terminal block has a proven screw connection on the outside of the control cabinet
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Easy potential distribution thanks to standardized plug-in bridges

Product properties

Number of Connections	2
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	1.02 W

Connection data

Number of connections per level	2
Nominal cross section	4 mm²

1st level connection left

Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Stripping length	8 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 2.5 mm²
Cross-section with insertion bridge, rigid	2.5 mm²
Cross-section with insertion bridge, flexible	1.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal Current	16 A
Maximum Load Current	16 A (with 4 mm² conductor cross section)
Nominal Voltage	500 V
Nominal cross section	4 mm²

Dimensions

Width	6.2 mm
End cover width	1 mm

Material specifications

Color	gray
Flammability rating according to UL 94	HB
Insulating material group	I
Insulating material	PA-F
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data

Open side panel

Yes

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Mounting

Mounting Type

NS 15

1415021
D-MBK/E - End cover, width: 1 mm, height: 26.2 mm, color: gray
0201595
FB-150 METER - Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long
0201647
Reducing plug - RPS
1406700
PT/FS 2,8 - Insulating sleeve, as touch protection, slide onto the conductor before for 2.8 slip-on sleeves
1413227
ATP-MBK - Partition plate, depth: 30.5 mm, width: 2.5 mm, height: 42.5 mm, color: gray
1205053
Screwdriver - SZS 0,6X3,5
1302338
IS-K 4 - Bridge bar isolator, color: gray
0301505
Bridge - ISSBI 10- 6
0203250
Fixed bridge - FBI 10- 6
0201867
Fixed bridge - FBI 20- 6
0201650
Fixed bridge - FBI 100- 6
0201155
EB 2- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 2, color: gray
0201142
EB 3- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 3, color: gray
0201139
EB 10- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 10, color: gray
1413230
Switching jumper - SBRN 2-7
1401695
NS 15 UNPERF 2000MM VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1401682
NS 15 PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1401763
NS 15 AL PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1204096
NS 15 WH PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1401637
E/MBK - End clamp, width: 6.2 mm, color: gray
1421633
E/MK - End clamp, width: 6.2 mm, color: gray
1421659
E/MK 1 - End clamp width: 6 mm, color: gray
0201304
Female test connector - PSBJ 3/13/4
0601292
Female test connector - PSB 3/10/4
3240152
C-SCF 1/2,8X0,5 - Slip-on sleeve, non-insulated, 0.5 ... 1 mm2, 2.8 x 0.5
3240048
C-SCFI 1,5/2,8X0,5 - Slip-on sleeve, red, 0.5 ... 1.5 mm2, 2.8 x 0.5
3240153
C-SCF 1/2,8X0,8 - Slip-on sleeve, non-insulated, 0.5 ... 1 mm2, 2.8 x 0.8
3240049
C-SCFI 1,5/2,8X0,8 - Slip-on sleeve, red, 0.5 ... 1.5 mm2, 2.8 x 0.8
3240156
C-SCF 1,5/6,3X0,8 - Slip-on sleeve, non-insulated, 0.5 ... 1.5 mm2, 6.3 x 0.8
3240052
C-SCFI 1,5/6,3X0,8 - Slip-on sleeve, red, 0.5 ... 1.5 mm2, 6.3 x 0.8
3240159
C-SCF 2,5/6,3X0,8 - Slip-on sleeve, non-insulated, 1.5 ... 2.5 mm2, 6.3 x 0.8
3240055
C-SCFI 2,5/6,3X0,8 - Slip-on sleeve, blue, 1.5 ... 2.5 mm2, 6.3 x 0.8
3240160
C-SCF 6/6,3X0,8 - Slip-on sleeve, non-insulated, 4 ... 6 mm2, 6.3 x 0.8
3240056
C-SCFI 6/6,3X0,8 - Slip-on sleeve, yellow, 4 ... 6 mm2, 6.3 x 0.8
1406700
PT/FS 2,8 - Insulating sleeve, as touch protection, slide onto the conductor before for 2.8 slip-on sleeves
0604707
PT/FS 6,3 - Insulating sleeve, as touch protection, slide onto the conductor before for 6.3 slip-on sleeves
