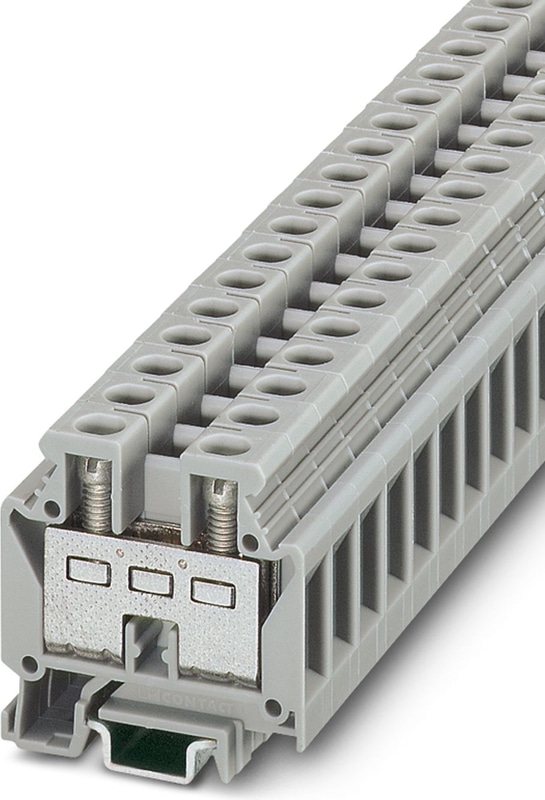

MBK 6/E - Mini feed-through terminal block

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 41 A, number of connections: 2, connection method: Screw connection, 1 level, Rated cross section: 6 mm2, cross section: 0.5 mm2 - 10 mm2, mounting type: NS 15, color: gray

  • Separating disks, partition plates, and test sockets complete the range of accessories
  • Clear arrangement thanks to marking of all terminal points
  • Space saving thanks to compact design and mounting option on a 15 mm DIN rail
  • Easy potential distribution thanks to standardized plug-in bridges
Technical Specifications

Product properties

Number of Connections2
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage6 kV
Maximum power dissipation for nominal condition1.31 W

Connection data

Number of connections per level2
Nominal cross section6 mm²

1 level

Screw threadM4
Tightening torque1.5 ... 1.8 Nm
Stripping length10 mm
Internal cylindrical gageA5
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.5 mm² ... 10 mm²
Cross section AWG20 ... 8 (converted acc. to IEC)
Conductor cross section flexible0.5 mm² ... 6 mm²
Conductor cross section, flexible [AWG]20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 6 mm²
Cross-section with insertion bridge, rigid6 mm²
Cross-section with insertion bridge, flexible4 mm²
2 conductors with same cross section, solid0.5 mm² ... 2.5 mm²
2 conductors with same cross section, flexible0.5 mm² ... 2.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 2.5 mm²
Nominal Current41 A
Maximum Load Current57 A (with 10 mm² conductor cross section)
Nominal Voltage500 V
Nominal cross section6 mm²

Rated data (ATEX/IECEx)

Identification II 2 G  Ex eb IIC Gb
Operating temperature range-60 °C ... 105 °C
Ex-certified accessories1413049 D-MBK 6/E
Ex-certified accessories0554019 TP-MBK 6/E
Ex-certified accessories1205066 SZS 1,0X4,0 VDE
Ex-certified accessories1421633 E/MK
List of bridgesFixed bridge / FBI 2- 8 / 0200020
List of bridgesFixed bridge / FBI 3- 8 / 0200059
List of bridgesFixed bridge / FBI 4- 8 / 0200046
List of bridgesFixed bridge / FBI 10- 8 / 0203263
Bridge data33 A / 6 mm²
Ex temperature increase40 K (41 A at 6 mm²)
Rated voltage275 V
for bridging with bridge275 V
Rated Insulation Voltage250 V
Output(Permanent)

Ex level General

Rated current37 A
Maximum Load Current49 A
Contact resistance0.78 mΩ

Ex connection data General

Torque range1.5 Nm ... 1.8 Nm
Nominal cross section6 mm²
Rated cross section AWG10
Connection capacity rigid0.5 mm² ... 10 mm²
Connection capacity AWG20 ... 8
Connection capacity flexible0.5 mm² ... 6 mm²
Connection capacity AWG20 ... 10
2 conductors with same cross section, solid0.5 mm² ... 2.5 mm²
2 conductors with the same cross-section AWG rigid20 ... 14
2 conductors with same cross section, stranded0.5 mm² ... 2.5 mm²
2 conductors with the same cross-section AWG flexible20 ... 14

Dimensions

Width8.2 mm
End cover width1.5 mm

Material specifications

Colorgray
Flammability rating according to UL 94V2
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-40 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)125 °C

Surge voltage test

ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 6 mm²0.72 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint1.89 kV
ResultTest passed

Mechanical data

Open side panelYes

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 15
Test force setpoint5 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight0.5 mm² / 0.3 kg
Conductor cross section/weight6 mm² / 1.4 kg
Conductor cross section/weight10 mm² / 2 kg
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2018-05

Ambient conditions

Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 15
Accessories
  • 1413049
    1413049
    D-MBK 6/E - End cover, width: 1.5 mm, height: 30.1 mm, color: gray
  • 1004416
    1004416
    Warning label - WS 5- 8
  • 1004212
    1004212
    Warning label - WS 4- 8
  • 1004128
    1004128
    Warning label - WS 3- 8
  • 0311540
    0311540
    Short-circuit connector - KSS 8
  • 2770215
    2770215
    TS-KK 3 - Separating plate, depth: 16 mm, width: 0.5 mm, height: 14 mm, color: gray
  • 1413227
    1413227
    ATP-MBK - Partition plate, depth: 30.5 mm, width: 2.5 mm, height: 42.5 mm, color: gray
  • 1007235
    1007235
    1007235 -
  • 1205066
    1205066
    Screwdriver - SZS 1,0X4,0 VDE
  • 1303337
    1303337
    IS-K 10 - Bridge bar isolator, color: gray
  • 0301534
    0301534
    Bridge - ISSBI 10- 8
  • 0200020
    0200020
    Fixed bridge - FBI 2- 8
  • 0200046
    0200046
    Fixed bridge - FBI 4- 8
  • 3003185
    3003185
    Fixed bridge - FB 10- 8-EX
  • 3029224
    3029224
    Fixed bridge - FB 2- 8-EX
  • 0203263
    0203263
    Fixed bridge - FBI 10- 8
  • 0200059
    0200059
    Fixed bridge - FBI 3- 8
  • 0202154
    0202154
    EB 2- 8 - Insertion bridge, pitch: 8 mm, number of positions: 2, color: gray
  • 0202141
    0202141
    EB 3- 8 - Insertion bridge, pitch: 8 mm, number of positions: 3, color: gray
  • 0202138
    0202138
    EB 10- 8 - Insertion bridge, pitch: 8 mm, number of positions: 10, color: gray
  • 1415238
    1415238
    Switching jumper - SBRN 2-9
  • 0202235
    0202235
    Switching jumper - SB 2- 8/13
  • 0202142
    0202142
    EB 4- 8 - Insertion bridge, pitch: 8 mm, number of positions: 4, color: gray
  • 3072340
    3072340
    EB 1/3/5/7-8 - Insertion bridge, pitch: 16.4 mm, number of positions: 4, pin assignment: 1, 3, 5, 7, length: 24 mm, color: gray
  • 3072341
    3072341
    EB 1/3/5-8 - Insertion bridge, pitch: 16.4 mm, number of positions: 3, pin assignment: 1,3,5, length: 24 mm, color: gray
  • 1401695
    1401695
    NS 15 UNPERF 2000MM VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 1401682
    1401682
    NS 15 PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 1401763
    1401763
    NS 15 AL PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • 1204096
    1204096
    NS 15 WH PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • 1052002
    1052002
    Zack marker strip - ZB 8:UNBEDRUCKT
  • 0818072
    0818072
    Marker for terminal blocks - UC-TM 8
  • 0828740
    0828740
    Marker for terminal blocks - UCT-TM 8
  • 1052015
    1052015
    1052015 -
  • 1052028
    1052028
    1052028 -
  • 1052413
    1052413
    1052413 -
  • 1401637
    1401637
    E/MBK - End clamp, width: 6.2 mm, color: gray
  • 1421633
    1421633
    E/MK - End clamp, width: 6.2 mm, color: gray
  • 1421659
    1421659
    E/MK 1 - End clamp width: 6 mm, color: gray
  • 0303419
    0303419
    Female test connector - PSBJ 4/15/6 FARBLOS
  • 0303312
    0303312
    Female test connector - PSBJ 4/15/6 WH
  • 0303325
    0303325
    Female test connector - PSBJ 4/15/6 RD
  • 0303354
    0303354
    Female test connector - PSBJ 4/15/6 BU
  • 0303367
    0303367
    Female test connector - PSBJ 4/15/6 YE
  • 0303370
    0303370
    PSBJ 4/15/6 GN, Female test connector, color: green
  • 0303383
    0303383
    PSBJ 4/15/6 VT, Female test connector, color: violet
  • 0303396
    0303396
    Female test connector - PSBJ 4/15/6 GY
  • 0303406
    0303406
    Female test connector - PSBJ 4/15/6 BK
  • 0303299
    0303299
    Female test connector - PSB 4/7/6
