Official DistributorSKU
MPN
CF 1000-10
Weight
29.5 kg
This product is Not Cancellable/Not Returnable
Series CF

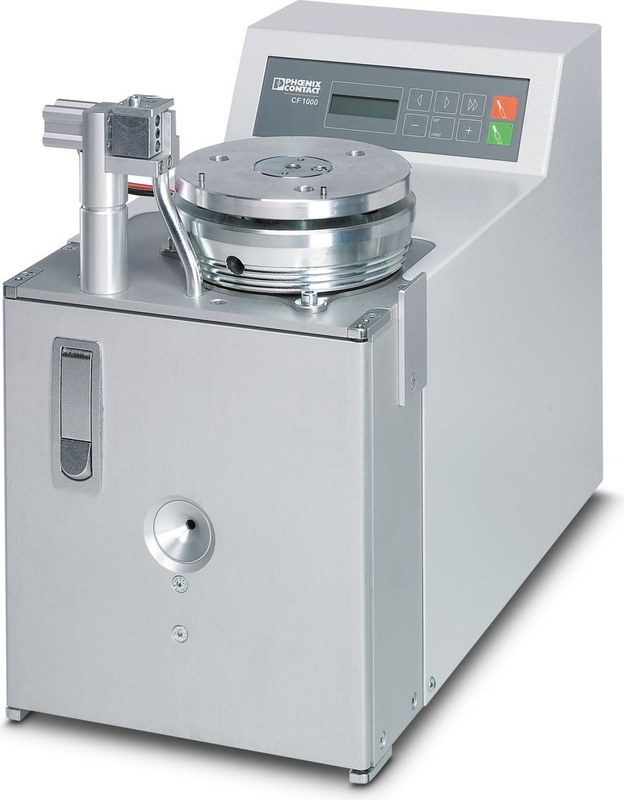

CF 1000-10 - Crimping tool, electro-pneumatic
Automatic stripping and crimping device, input voltage 100 V ... 240 V, electro-pneumatic, for loose ferrules with insulating collar, 4 mm2, 6 mm2, and 10 mm2, without conversion kit
- The conductor is stripped in a single step and crimped with a ferrule to a high standard of quality
- Quantity counter
- The pull-out forces meet the requirements of IEC/EN 60999 and IEC/EN 60947
- The automatic stripping and crimping device can be used to process loose ferrules with insulating collars according to DIN 46228‑4
- Quick change of cross section without the need for additional adjustments
- Up to 1200 conductors can be processed an hour
- Suitable for bulk processing
- Rugged design
Technical Specifications
Product properties
| Compression | trapezoidal |
| Insertion length minimum | 40 mm |
| Air consumption per compression | 1.2 l |
| Pressure Range | 5.00 bar ... 6.00 bar |
Electrical properties
| Frequency Range | 50 Hz ... 60 Hz |
| Power consumption | 70 W |
Supply
| Supply Voltage Range | 100 V AC ... 240 V AC (50 Hz ... 60 Hz) |
Conductor connection
| Cross section range, metric | 4 mm² ... 10 mm² |
Dimensions
| Width | 250 mm |
| Height | 412 mm |
| Length | 550 mm |
Standards and Regulations
| Tests | DIN 46228-4: 1990-09 |
Accessories
CF 1000-10-TOOLKIT 4/10-12 - Conversion kit for CF 1000-10, for insulated ferrules according to DIN 46228-4: 1990-09, cross section range: 4 mm2, stripping length: 10 - 12 mm
CF 1000-10-TOOLKIT 6/12 - Conversion kit for CF 1000-10, for insulated ferrules according to DIN 46228-4: 1990-09, cross section range: 6 mm2, stripping length: 12 mm
CF 1000 SICHERUNG - Accessories for CF 1000 automatic stripping and crimping device, mains fuse, 20 x 5 mm, slow-blow, 2 A, up to 250 V
CF 1000 EM4,0 - Accessories for CF 1000 and CF 1000-10 automatic stripping and crimping device, replacement blade for 4.0 mm2, V-shaped- FUSE SB 2.0A/250V - Accessories for CF 1000-1,5 and CF 1000-10 automatic stripping and crimping device, mains fuse, 20x5 mm, slow-blow, 2 A, up to 250 V
