1208209
Official DistributorSKU
PHX1208209
MPN
CF 1000-1,5 120V
Weight
0.099 kg
Series CF

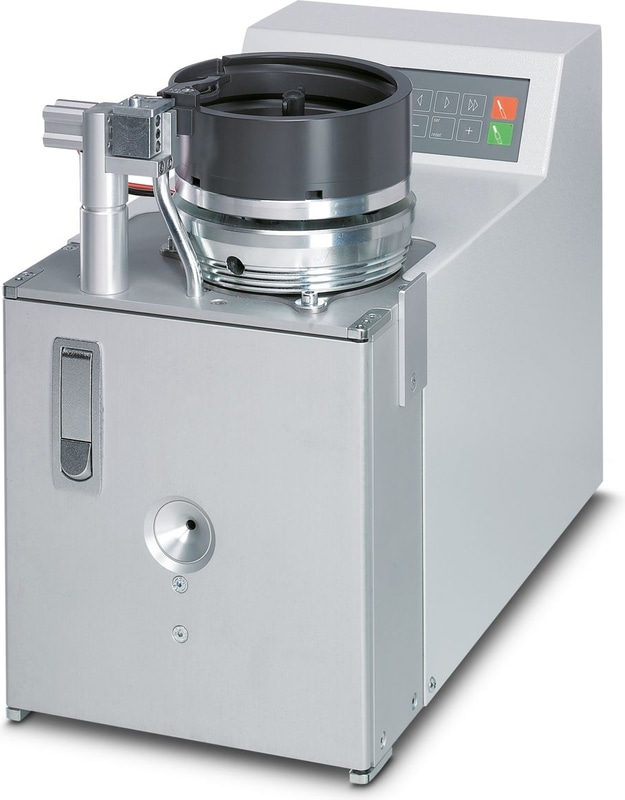

CF 1000-1,5 120V - Tool
Automatic stripping and crimping device, 120 V version, for insulated ferrules with a cross-section range from 0.5 mm2 ... 2.5 mm2, according to DIN 46228-4: 1990-09
- Quantity counter
- The conductor is stripped in a single step and crimped with a ferrule to a high standard of quality
- The pull-out forces meet the requirements of IEC/EN 60999 and IEC/EN 60947
- The automatic stripping and crimping device can be used to process loose ferrules with insulating collars according to DIN 46228‑4
- Quick change of cross section without the need for additional adjustments
- Suitable for bulk processing
- Rugged design
Technical Specifications
Product properties
| Compression | trapezoidal |
| Air consumption per compression | 1.2 l |
Supply
| Supply Voltage | 120 V |
Connection data
| Conductor cross section flexible | 0.34 mm² ... 4 mm² |
Dimensions
| Width | 240 mm |
| Height | 390 mm |
| Length | 490 mm |
Standards and Regulations
| Tests | DIN 46228-4: 1990-09 |
Why Proax for Phoenix Contact 1208209?
Proax is an authorized distributor of Phoenix Contact 1208209 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
