1202577
Official DistributorSKU
PHX1202577
MPN
E/UK-NS 35
Weight
0.01 kg

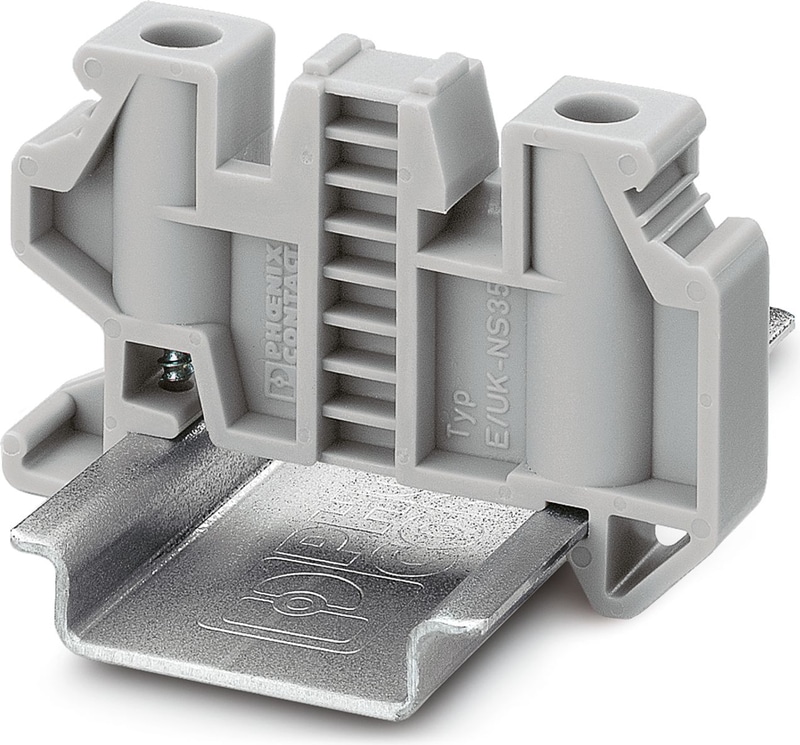

E/UK-NS 35 - End bracket
End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
Documents
Technical Specifications
Dimensions
| Width | 9.5 mm |
| Height | 48.6 mm |
| Depth | 32.8 mm |
| Depth on NS 35/7,5 | 35 mm |
| Length | 48.6 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting Type | NS 35/7,5 |
| Mounting Type | NS 35/15 |
Accessories
KLM-A - Terminal strip markers, for strip marking, adjustable height, for use with end clamps E/UK, E/NS 35 N or CLIPFIX 35, lettering field size: 44 x 7 mm
KLM - Terminal strip marker carrier, for E/UK or CLIPFIX 35 end brackets, can be marked using insert labels in 25 x 6 mm format
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver- NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
