Official DistributorSKU
MPN
TMC 1 M1 100 7,0A
Weight
0.078 kg
Series TMC

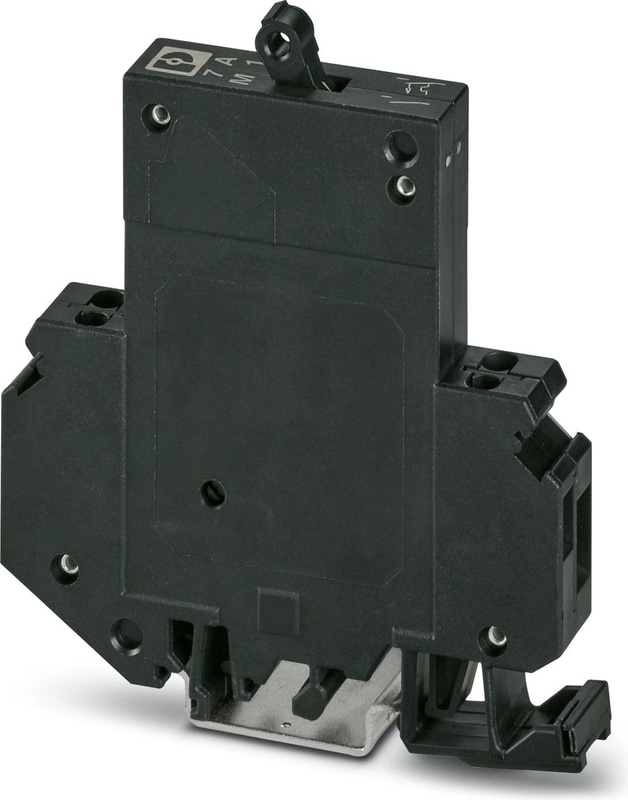

TMC 1 M1 100 7,0A - Thermomagnetic device circuit breaker
Thermal-magnetic circuit breaker, 1-pos., normal blow, 1 N/O contact, with universal foot for mounting on NS 32 or NS 35
TMC
The Phoenix Contact TMC Series comprises thermomagnetic circuit breakers designed to provide reliable overcurrent protection in various industrial applications. This series includes two main product lines:
TMC 7 Series: UL 1077 Recognized supplemental protectors.
TMC 8 Series: UL 489 Listed circuit breakers.
Key Features:
Trip-Free Design: Ensures that the breaker will trip during an overcurrent event, even if the actuator is held in the ""ON"" position, enhancing safety.
Snap-Action Mechanism: Provides a rapid switching action, reducing contact wear and extending the lifespan of the breaker.
Multi-Pole Options: Available in 1-, 2-, and 3-pole configurations to accommodate various application requirements.
Trip Curves: Offers B, C, and D trip characteristics to match different load conditions and ensure appropriate protection levels.
Technical Specifications
Product properties
| Product family | TMC |
| Type | DIN rail module, one-piece |
| Number of Positions | 1 |
Electrical properties
| Fuse type | Automatic device |
| Fuse | M1 (normal blow) |
General
| Tripping method | TM (thermomagnetic) |
| Fuse | M1 (normal blow) |
Connection data
| Nominal Current | 7 A |
| Nominal Voltage | 250 V AC |
| Nominal Voltage | 65 V DC |
Dimensions
| Width | 12.5 mm |
| Height | 83.5 mm |
| Depth | 96 mm |
Mounting
| Mounting Type | DIN rail: 35 mm |
Accessories
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
NS 32 CU/120QMM UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Copper, uncoated, G profile, color: copper-colored
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, G profile, color: copper-colored
NS 32 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, G profile, color: silver
NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
Why Proax for Phoenix Contact 0915474?
Proax is an authorized distributor of Phoenix Contact 0915474 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 6 |
