Name: 0711399
Brand: Phoenix Contact
SKU: PHX0711399

Official Distributor

By Phoenix Contact

SKU

MPN

UK 35 TEILBESTUECKT

Weight

0.055 kg

This product is Not Cancellable/Not Returnable

Series UK

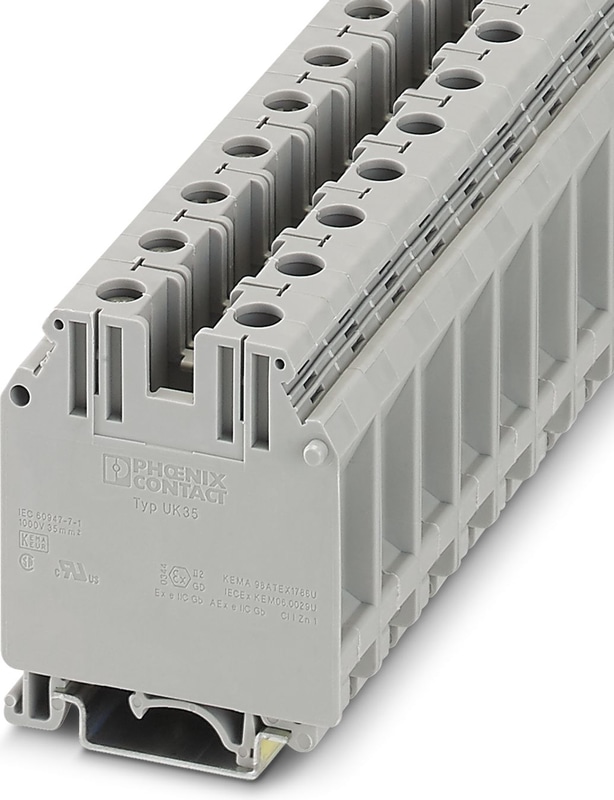

UK 35 TEILBESTUECKT - Feed-through terminal block

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 150 A, number of connections: 1, connection method: Screw connection, cross section: 0.75 mm2 - 50 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

Notes

Notes on operation

The terminal block has only one screw

Product properties

Number of Connections	1
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage

8 kV

Connection data

Number of connections per level

Level 1 above 1 below 1

Screw thread	M6
Tightening torque	3.2 ... 3.7 Nm
Stripping length	16 mm
Internal cylindrical gage	B9
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.75 mm² ... 50 mm²
Cross section AWG	18 ... 1/0 (converted acc. to IEC)
Conductor cross section flexible	0.75 mm² ... 35 mm²
Conductor cross section, flexible [AWG]	18 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.75 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.75 mm² ... 35 mm²
2 conductors with same cross section, solid	0.75 mm² ... 16 mm²
2 conductors with same cross section, flexible	0.75 mm² ... 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.75 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.75 mm² ... 6 mm²
Nominal Current	150 A
Maximum Load Current	150 A (with 50 mm² conductor cross section)
Nominal Voltage	1000 V
Connection in acc. with standard	IEC/EN 60079-7
Test certificate name	IECEx KEM 06.0029U / KEMA 98ATEX1786 U
Conductor cross section rigid	0.75 mm² ... 50 mm²
Cross section AWG	18 ... 1 (converted acc. to IEC)
Conductor cross section flexible	0.75 mm² ... 35 mm²
Maximum Load Current	147 A (with 50 mm² conductor cross section)
Maximum Load Current	118.5 A (with 35 mm² conductor cross section)
Nominal Voltage	690 V

Dimensions

Width

16 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA

Mechanical data

Open side panel

Standards and Regulations

Connection in acc. with standard	IEC 60947-7-1
Connection in acc. with standard	IEC/EN 60079-7

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15
Mounting Type	NS 32
