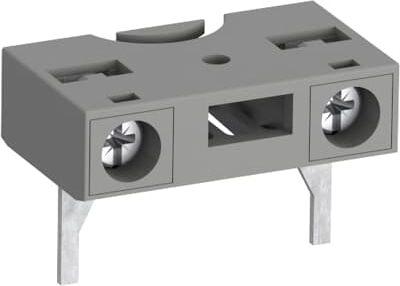

ABB LDC4
AllMotor Control & ProtectionContactors

LDC4

Official Distributor

By ABB

SKU
ABBLDC4
MPN
1SBN070156T1000
Weight
0.01 kg
LDC4 is an additional coil terminal blocks equipped with screw terminals for a top and/or bottom access to the coil terminals of AF(C)(S)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays.
Technical Specifications

Dimensions

Product Net Width35 mm
Product Net Depth / Length22 mm
Product Net Height24 mm
Product Net Weight0.01 kg

Technical

StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Frequency (f)Control Circuit 50 / 60 Hz
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 690 V
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Connecting Capacity Control CircuitFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Connecting Capacity Control CircuitFlexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Connecting Capacity Control CircuitRigid Solid 1/2x 1 ... 2.5 mm²
Connecting Capacity Control CircuitRigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping LengthControl Circuit 10 mm
Tightening torqueControl Circuit 1.2 N·m
Terminal TypeScrew Terminals
Suitable forAF09
Suitable forAF09Z
Suitable forAF12
Suitable forAF12Z
Suitable forAF16
Suitable forAF16Z
Suitable forAF26
Suitable forAF26Z
Suitable forAF30
Suitable forAF30Z
Suitable forAF38
Suitable forAF38Z
Suitable forAF40
Suitable forAF52
Suitable forAF65
Suitable forAF80
Suitable forAF96
Suitable forAFC09
Suitable forAFC12
Suitable forAFC16
Suitable forAFC26
Suitable forAFC30
Suitable forAFC38
Suitable forAFC40
Suitable forAFC52
Suitable forAFC65
Suitable forAFC80
Suitable forAFC96
Suitable forAFS09
Suitable forAFS09Z
Suitable forAFS12
Suitable forAFS12Z
Suitable forAFS16
Suitable forAFS16Z
Suitable forAFS26
Suitable forAFS26Z
Suitable forAFS30
Suitable forAFS30Z
Suitable forAFS38
Suitable forAFS38Z
Suitable forAFS40
Suitable forAFS52
Suitable forAFS65
Suitable forAFS80
Suitable forAFS96
Suitable forAF09B
Suitable forAF09ZB
Suitable forAF12B
Suitable forAF12ZB
Suitable forAF16B
Suitable forAF16ZB
Suitable forAF26B
Suitable forAF26ZB
Suitable forAF30B
Suitable forAF30ZB
Suitable forAF38B
Suitable forAF38ZB
Suitable forAF40B
Suitable forAF52B
Suitable forAF65B
Suitable forAF80B
Suitable forAF96B
Suitable forNF22E
Suitable forNFZ22E
Suitable forNF31E
Suitable forNFZ31E
Suitable forNF40E
Suitable forNFZ40E
Suitable forNF44E
Suitable forNFZ44E
Suitable forNF53E
Suitable forNFZ53E
Suitable forNF62E
Suitable forNFZ62E
Suitable forNF71E
Suitable forNFZ71E
Suitable forNF80E
Suitable forNFZ80E
Suitable forNF33/11
Suitable forNF51/11
Suitable forNFC22E
Suitable forNFC31E
Suitable forNFC40E
Suitable forNFC44E
Suitable forNFC53E
Suitable forNFC62E
Suitable forNFC71E
Suitable forNFC80E
Suitable forNFZB22E
Suitable forNFB22E
Suitable forNFZB31E
Suitable forNFB31E
Suitable forNFZB40E
Suitable forNFB40E
Suitable forNFZB44E
Suitable forNFB44E
Suitable forNFZB62E
Suitable forNFB62E
Suitable forNFZB80E
Suitable forNFB80E
Product NameAdditional Coil Terminal Block

Technical UL/CSA

Connecting Capacity Control Circuit UL/CSARigid Solid 1/2x 18-14 AWG
Connecting Capacity Control Circuit UL/CSARigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSAControl Circuit 11 in·lb

Why Proax for ABB LDC4?

Proax is an authorized distributor of ABB LDC4 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
