KC6-22Z-01
Official DistributorBy ABB
SKU
ABBKC622Z01
MPN
GJH1213001R0221
Weight
0.184 kg

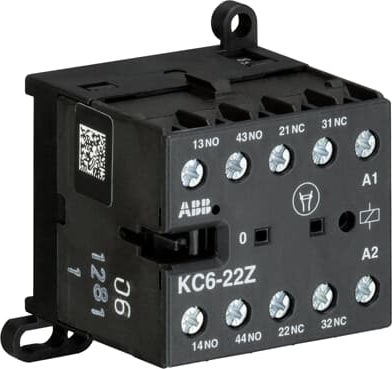

The KC6-22Z mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the noiseless and hum-free coil and a a switch position indication.
Technical Specifications
Dimensions
| Product Net Width | 52.5 mm |
| Product Net Depth / Length | 46.5 mm |
| Product Net Height | 57.5 mm |
| Product Net Weight | 0.175 kg |
Technical
| Coil Consumption | Average Holding Value DC 3.5 W |
| Coil Consumption | Average Pull-in Value DC 3.5 W |
| Coil Operating Limits | (acc. to IEC 60947-5-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Rigid 1/2x 1 ... 4 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Rigid 1/2x 1 ... 4 mm² |
| Maximum Electrical Switching Frequency | (AC-15) 600 cycles per hour |
| Maximum Electrical Switching Frequency | (DC-13) 600 cycles per hour |
| Mechanical Durability | 10000000 cycle |
| Mini Contactor Type | Mini Contactor Relay |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 0 mm |
| Minimum switching capacity | 17 V |
| Minimum switching capacity | 5 mA |
| Mounting Position | 1 ... 6 |
| Mounting Type | DIN-Rail |
| Mounting Type | Screw |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Number of Auxiliary Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Number of Poles | 4 |
| Power Loss | at Rated Operating Conditions per Pole 0.32 W |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Rated Frequency (f) | Auxiliary Circuit 60 Hz |
| Rated Frequency (f) | Auxiliary Circuit DC |
| Rated Frequency (f) | Control Circuit DC |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Frequency (f) | Main Circuit DC |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Rated Operational Current AC-15 (Ie) | (24 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (400 V) 3 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A |
| Rated Operational Current DC-13 (Ie) | (110 V) 0.7 A |
| Rated Operational Current DC-13 (Ie) | (220 / 240 V) 0.4 A |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Rated Operational Voltage | Auxiliary Circuit 250 V DC |
| Recommended Screw Driver | M3 |
| Recommended Screw Driver | Pozidriv 1 |
| Short-Circuit Protective Devices | gG Type Fuses 6 A |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-4-1 |
| Standards | IEC/EN 60947-5-1 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1 |
| Terminal Type | Screw Terminals |
| Tightening torque | Auxiliary Circuit 0.8 ... 1.1 N·m |
| Tightening torque | Control Circuit 0.8 ... 1.1 N·m |
| Tightening torque | Main Circuit 0.8 ... 1.1 N·m |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
Technical UL/CSA
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 1/2x 22-10 AWG |
| Contact Rating UL/CSA | A600 |
| General Use Rating UL/CSA | (600 V AC) 5 A |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| Pilot Duty UL/CSA | A600 |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Tightening Torque UL/CSA | Control Circuit 7 in·lb |
Why Proax for ABB KC6-22Z-01?
Proax is an authorized distributor of ABB KC6-22Z-01 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | KC622Z01 |
| Pack Size | 1 |
