KC6-22Z-F-05
Official DistributorBy ABB
SKU
ABBKC622ZF05
MPN
GJH1213003R0225
Weight
1 kg

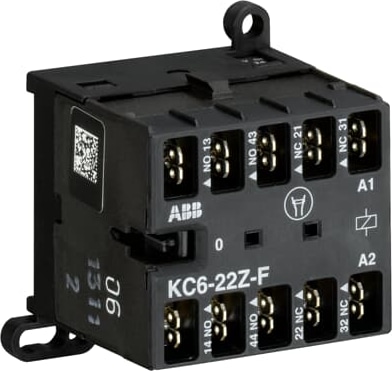

The KC6-22Z-F mini contactor relay is a compact 4 pole contactor relay with flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the noiseless and hum-free coil and a a switch position indication.
Technical Specifications
Dimensions
| Product Net Width | 52.5 mm |
| Product Net Depth / Length | 46.5 mm |
| Product Net Height | 57.5 mm |
| Product Net Weight | 0.17 kg |
Technical
| Coil Consumption | Average Holding Value DC 3.5 W |
| Coil Consumption | Average Pull-in Value DC 3.5 W |
| Coil Operating Limits | (acc. to IEC 60947-5-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
| Maximum Electrical Switching Frequency | (AC-15) 600 cycles per hour |
| Maximum Electrical Switching Frequency | (DC-13) 600 cycles per hour |
| Mechanical Durability | 10000000 cycle |
| Mini Contactor Type | Mini Contactor Relay |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 0 mm |
| Minimum switching capacity | 17 V |
| Minimum switching capacity | 5 mA |
| Mounting Position | 1 ... 6 |
| Mounting Type | DIN-Rail |
| Mounting Type | Screw |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Number of Auxiliary Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Number of Poles | 4 |
| Power Loss | at Rated Operating Conditions per Pole 0.32 W |
| Rated Control Circuit Voltage (Uc) | 220 ... 240 V DC |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Rated Frequency (f) | Auxiliary Circuit 60 Hz |
| Rated Frequency (f) | Auxiliary Circuit DC |
| Rated Frequency (f) | Control Circuit DC |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Frequency (f) | Main Circuit DC |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Rated Operational Current AC-15 (Ie) | (24 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (400 V) 3 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A |
| Rated Operational Current DC-13 (Ie) | (110 V) 0.7 A |
| Rated Operational Current DC-13 (Ie) | (220 / 240 V) 0.4 A |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Rated Operational Voltage | Auxiliary Circuit 250 V DC |
| Short-Circuit Protective Devices | gG Type Fuses 6 A |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-4-1 |
| Standards | IEC/EN 60947-5-1 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1 |
| Terminal Type | Flat-Pin Connections |
Technical UL/CSA
| Contact Rating UL/CSA | A600 |
| General Use Rating UL/CSA | (600 V AC) 5 A |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| Pilot Duty UL/CSA | A600 |
