1SCA161292R1001

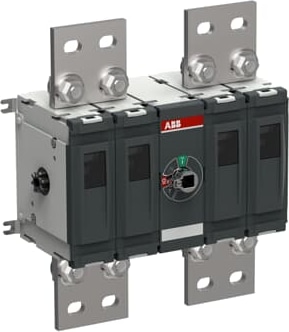

A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 250-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.
The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.
Main characteristics of this particular OTDC type:
Disconnect double PV circuit, Approved according to UL98B and IEC 60947-1,-3
Technical Specifications
Dimensions
| Product Frame Size | M |
| Product Net Width | 255.5 mm |
| Product Net Width | 10.1 in |
| Product Net Height | 211 mm |
| Product Net Height | 8.3 in |
| Product Net Depth / Length | 135 mm |
| Product Net Depth / Length | 5.3 in |
| Product Net Weight | 9.7 kg |
| Product Net Weight | 21.3 lb |
Technical
| Connection configuration | Single circuit 6c, 6g |
| Rated Operational Current DC-21B (Ie) | (1500 V) 1000 A |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | 1500 V |
| Rated Short-Circuit Making Capacity (Icm) | (1500 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1500 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Protection Type | Circuit breaker |
| Power Loss | at Rated Operating Conditions per Pole 30...32 W |
| Handle Type | Handle and shaft not included |
| Positive Opening Operation Torque (Direct Opening Action) | 18 … 30 N·m |
| Shaft Diameter | 12 mm |
| Shaft Diameter | 0.47 in |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Operating mode | Front Operated |
| Standards | UL98B and IEC 60947-1, -3 |
| Special Functions | No |
| Mounting Type | Base Mounting |
| Number of Circuits | 1 |
| Number of Poles | 4 |
| Terminal Type | Lug terminals |
| Terminal Width | 30 mm |
| Terminal Width | 1.2 in |
| Tightening torque | Cable Lug 50 … 75 N·m |
| Tightening torque | Cable Lug 443 … 664 lbf·in |
| Utilization | Photovoltaic |
| Utilization category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Utilization category | Switching of single PV string(s) without reverse and overcurrents (DC-PV1) |
Technical UL/CSA
| Maximum Operating Voltage | 1500Vdc, UL 98B |
| Ampere Rating | 1000A,1500Vdc,UL98B |
| Short-circuit current rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers 10 kA |
| Tightening torque | Cable Lug 50 … 75 N·m |
| Tightening torque | Cable Lug 443 … 664 lbf·in |
