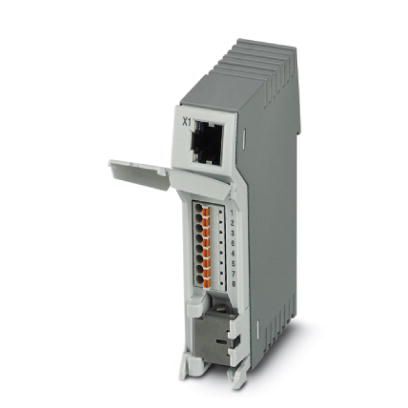

Patch panels - PP-RJ-SCC-F
Patch panel, RJ45 jack on Push-in terminal blocks, 10/100/1000 Mbps, DIN rail adapter, IP20, shield contacting with strain relief, shield current monitoring, surge protection
- 10/100/1000 Mbps
- Extended temperature range of -40°C to +75°C
- Fast connection of the field cable
- Wiring space covered with front panel cover
- Tool-free shield contacting with strain relief
- Integrated surge protection to ensure high system availability
- Shield current monitoring with visual display
- Shipbuilding approval in accordance with DNV GL
- PoE-capable in accordance with IEEE 802.3bt, type 4
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
| Utilization restriction | Use in potentially explosive areas is not permitted in China. |
Dimensions
| Caption | Housing dimensions |
| Width | 23.8 mm |
| Height | 101.3 mm |
| Depth | 86 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Altitude | ≤ 2000 m (Restrictions for ATEX applications) |
| Degree of Protection | IP20 (Manufacturer's declaration) |
General
| Electrical isolation | FE // Ethernet |
| External Cable Diameter | 5.5 mm ... 6.5 mm |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Mounting Type | DIN rail mounting, stationary |
| Net weight | 124.2 g |
| Housing Material | Plastic |
| Color | gray |
| MTTF | 3281 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 1245 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
| MTTF | 472 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
| Degree of pollution | 2 |
| Overvoltage category | II |
Power supply
| Supply Voltage Range | 36 V DC ... 52 V DC ±10 % (via PoE) |
| Supply Voltage Range | 42 V DC ... 57 V DC (in acc. with UL) |
Interfaces
| Interface 1 | Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3 |
| Connection Method | Push-in connection |
| Note on the connection method | CAT5e |
| Transmission length | 100 m (including patch cables) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 16 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6) |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6) |
| Stripping length | 8 mm |
| Pin assignment | 1:1 |
| Serial transmission speed | 10/100/1000 Mbps |
| Frequency Range | 125 MHz |
| Maximum output current | 725 mA (PoE) |
| Current carrying capacity | ≤ 1.5 A (≤ 60 W (PoE+)) |
| Maximum output power | 60 W |
| Interface 2 | Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3 |
| Connection Method | RJ45 jack |
Function
| Designation | Shield current monitoring |
| Switch-on threshold | ≥ 30 mA |
| Local diagnostics | Yellow LED |
| Precision | ± 5 % |
| Response time | 3 s |
| Continuous shield current | ≤ 1.5 A |
| Power consumption | 270 mW (Shield current monitoring) |
| Impedance | ≤ 1 Ω |
| Voltage | ≤ 10 V |
Conformance/approvals
| Designation | CE |
| Certificate | CE-compliant |
| Designation | ATEX |
| Identification | ??? II 3 G Ex nA nC IIC T4 Gc X |
| Additional text | Please follow the special installation instructions in the documentation! |
| Designation | UL, USA / Canada |
| Identification | Class I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4 |
| Identification | Class I, Div. 2, Groups A, B, C, D |
| Designation | UL, USA |
| Certificate | UL 60079-0 Ed. 6 / UL 60079-15 Ed. 4 |
| Designation | UL, Canada |
| Certificate | CSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16 |
| Designation | Corrosive gas test |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Designation | Shipbuilding |
| Identification | DNV GL |
| Temperature | D |
| Humidity | B |
| Vibration | B |
| EMC | B |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 10 Hz ... 57 Hz, amplitude ±3.5 mm, 57 Hz ... 150 Hz, 5g |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | 30g for 11 ms, three shocks in each spatial direction |
| Type of test | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 |
| Test result | 10g for 16 ms, 1000 shocks in each spatial direction |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV (Test Level 3) |
| Indirect discharge | ± 6 kV |
| Standards/regulations | EN 61000-4-3 |
| Frequency Range | 80 MHz ... 3 GHz (Test Level 3) |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 1 kV (Data line, asymmetrical) |
| Standards/regulations | EN 61000-6-4 |
| Standards/regulations | EN 61000-4-6 |
| Frequency Range | 0.15 MHz ... 80 MHz |
| Standards/regulations | DIN EN 61643-21 |
| Rated Insulation Voltage | 85 V DC |
| IEC test classification | C2 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
2703016 - Patch panel, RJ45 jack on screw terminal blocks, CAT5e, 10/100/1000 Mbps, DIN rail adapter, IP20, shield contacting with strain relief
2703018 - Patch panel, RJ45 jack on Push-in terminal blocks, CAT5e, 10/100/1000 Mbps, DIN rail adapter, IP20, shield contacting with strain relief
2703019 - Patch panel, RJ45 jack on IDC terminal blocks, CAT6, 10/100/1000 Mbps, DIN rail adapter, IP20, shield contacting with strain relief
2744869 - Crimping pliers, for assembling the RJ45 plugs FL PLUG RJ45..., for assembly on site
1204504 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.4 x 2.5 x 75 mm, 2-component grip, with non-slip grip
2313928 - Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 100 Mbps. Connection using RJ45 and COMBICON plug-in screw terminal block.
2313931 - Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 100 Mbps. Possible to connect two RJ45 plugs.
2313915 - Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 1 Gbps. Possible to connect two RJ45 plugs.
2902985 - Passive network isolator for electrical isolation in Ethernet networks. For the protection of Ethernet devices against potential differences of up to 4 kV. Can be used for transmission speeds of up to 100 Mbps. Ethernet connection via two M12 sockets (D-coded).
1408360 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 2.0 m- 1408365 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 3.0 m
1408968 - Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET- 1408969 - Patch cable, degree of protection: IP20, cable length: 2 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
1419001 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6A, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: black, Ethernet
1658435 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 4, 100 Mbps, CAT5, material: Plastic, connection method: Insulation displacement connection, cable outlet: straight, color: traffic grey A RAL 7042, PROFINET- 1656725 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 23, cable outlet: straight, color: traffic grey A RAL 7042, Ethernet
1658008 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 23, cable outlet: straight, color: black, Ethernet- 1204504 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.4 x 2.5 x 75 mm, 2-component grip, with non-slip grip
1212488 - Electronic diagonal cutter, tapered head, angled (21°), without chamfer, with opening spring
