Official DistributorBy ABB
SKU
MPN
1SAP151000R0278
Weight
0.133 kg

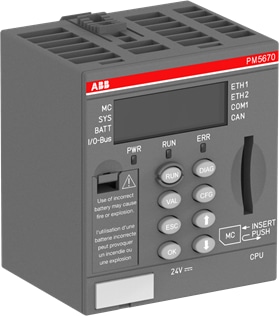

PM5670-2ETH: AC500 Processor module. Memory 160MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display.
Technical Specifications
Dimensions
| Product Net Weight | 0.133 kg |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.152 kg |
| Package Level 1 Depth / Length | 84 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Width | 71 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | Memory 160MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display |
| Number of Hardware Interfaces | Industrial Ethernet 2 |
| Number of Hardware Interfaces | Other 2 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 0 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 0 |
| Number of Hardware Interfaces | Wireless 0 |
| Memory Size | 820500 kB |
| Memory Type User Data | RAM |
| Controller Processing Time | 0.000002 ms |
| Number of Digital Configurable I/Os | 0 |
| Degree of Protection | IP20 |
| Rated voltage (UR) | 24 V DC |
| Supply Voltage | 20.4 … 28.8 V DC |
Additional Information
| Product Main Type | PM5670 |
Why Proax for ABB PM5670-2ETH?
Proax is an authorized distributor of ABB PM5670-2ETH and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | PM56702ETH |
| Pack Size | 1 |
