Series FL-PP-RJ45

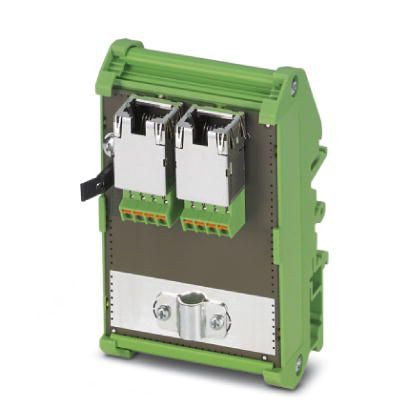

Patch panels - FL-PP-RJ45-SCC/SC045
Cable sharing module, two RJ45 jacks with Ethernet assignment (cable outlet on the top) to 8 spring-cage connection terminal blocks, CAT5e, 10/100 Mbps, DIN rail mounting, IP20, option of shield contacting on DIN rail via jumpers
- Safe shield connection to ground potential
- CAT5e
- 10/100 Mbps
- Mounting on a DIN rail
- Cable sharing adapter
- Y adapter
- Easy use of one cable for various services
- Optional shield connection via jumpers
Technical Specifications
Dimensions
| Width | 56 mm |
| Height | 90 mm |
| Depth | 51 mm |
Ambient conditions
| Ambient Temperature (Operation) | -10 °C ... 50 °C |
| Degree of Protection | IP20 |
General
| External Cable Diameter | 6 mm ... 10 mm |
| Mounting Position | any |
| Mounting Type | DIN rail mounting |
| Net weight | 114 g |
| Color | green |
Interfaces
| Interface 1 | Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 |
| No. of ports | 1 |
| Connection Method | Spring-cage connection |
| Transmission length | 100 m (including patch cables) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Pin assignment | 1, 2, 3, 6 |
| Pin assignment | 4, 5, 7, 8 |
| Serial transmission speed | 10/100 Mbps |
| Interface 2 | Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 |
| No. of ports | 1 |
| Connection Method | RJ45 CAT5e |
| Pin assignment | 1, 2, 3, 6 |
| Pin assignment | 1, 2, 3, 6 |
Conformance/approvals
| Designation | Corrosive gas test |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
Standards and Regulations
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Rated Insulation Voltage | 50 V |
| Rated surge voltage | 0.5 kV |
| Insulation | Basic insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
2744869 - Crimping pliers, for assembling the RJ45 plugs FL PLUG RJ45..., for assembly on site
1416295 - Data cable, Ethernet CAT5 (100 Mbps), 4-position, PUR halogen-free, water blue RAL 5021, shielded (Aluminum-coated foil, tinned copper braided shield), free cable end, on free cable end, cable length: 100 m
1204504 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.4 x 2.5 x 75 mm, 2-component grip, with non-slip grip
2313928 - Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 100 Mbps. Connection using RJ45 and COMBICON plug-in screw terminal block.
2313931 - Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 100 Mbps. Possible to connect two RJ45 plugs.
2313915 - Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 1 Gbps. Possible to connect two RJ45 plugs.
1656725 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 23, cable outlet: straight, color: traffic grey A RAL 7042, Ethernet
1658008 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 23, cable outlet: straight, color: black, Ethernet
1408360 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 2.0 m- 1408365 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 3.0 m
1408968 - Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET- 1408969 - Patch cable, degree of protection: IP20, cable length: 2 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
1419001 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6A, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: black, Ethernet- 1658435 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 4, 100 Mbps, CAT5, material: Plastic, connection method: Insulation displacement connection, cable outlet: straight, color: traffic grey A RAL 7042, PROFINET
