Official DistributorBy ABB
SKU
MPN
7TAA260170R0038
Weight
0.009 kg

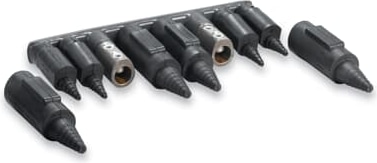

Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with 350 services, conductor range feeder 2-1000 tap 6-350 SL 14-6, Eight Outlets, (2) 1-Hole, (4) 2-Hole and (2) 1-Hole. 15-3/4 inch wide x 5-1/4 inch tall for the 2-Hole. 2-Hole Towers tapped 7/8-14 UNF-2B, 1-Hole Towers Tapped 11/16-16 UNS-2B. Includes Screws, (4) long Rockets, (4) short Rockets, Silicone Grease. Black PVC Coating.
Technical Specifications
Additional Information
| Application | Flood Seal Mechanical 1000 kcmil Connector |
| Brand / Label | Homac |
| Color | Black |
| Connection Type | Mechanical |
| Insulation Material | Yes |
Additional Information
| Material | Aluminum Connector, EPDM Rubber Insulating Sleeves |
| Number of Conductors | 8 |
| Product type | Flood Seal Twin-Screw Mechanical Connector |
| Special Functions | Flood Seal Insulating Rockets field tested in more thatn 10 million applications, and serve as waterproof space outlet caps until used as waterproof cable insulators. All Connectors are 100 percent Hi-Pot tested at 4000 volts for 60 seconds. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. Aluminum-alloy connector construction for High Strength and High Conductivity. Dual-rated to accept a wide range of Copper and Aluminum Conductors. |
| Standards | ANSI C119.1 and C119.4. |
Why Proax for ABB UH 1000-242 R?
Proax is an authorized distributor of ABB UH 1000-242 R and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | UH1000242R |
| Pack Size | 1 |
