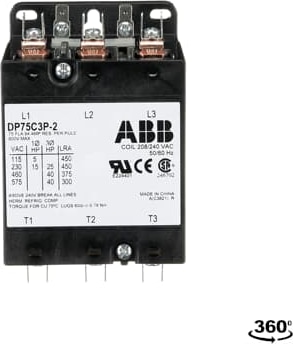

DP75C3P-2
Official DistributorBy ABB
SKU
ABBDP75C3P2
MPN
1SBX107300R1300
Weight
1.739 kg
DP75C3P-2 DP contactor provide outstanding performance in various HVAC application and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
Technical Specifications
Dimensions
| Product Net Depth / Length | 130 mm |
Technical
| Number of Main Contacts NO | 3 |
| Rated Frequency (f) | Control Circuit 50 Hz |
| Rated Frequency (f) | Control Circuit 60 Hz |
| Product Name | Definite Purpose Contactors |
Technical UL/CSA
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 5 Hp |
| Horsepower Rating UL/CSA | (208 V AC) Three Phase 20 Hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Single Phase 10 Hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 20 Hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 40 Hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 40 Hp |
| Full Load Amps Motor Use | 75 A |
| Full Load Amps AC Resistance (Heating) | (600 V AC) 90 A |
Why Proax for ABB DP75C3P-2?
Proax is an authorized distributor of ABB DP75C3P-2 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | DP75C3P2 |
| Pack Size | 1 |
