LD38-4
Official DistributorBy ABB
SKU
ABBLD384
MPN
1SBN072308R1000
Weight
0.07 kg

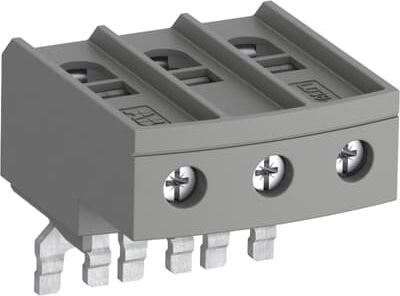

LD38-4 is an additional terminal block designed to increase the connecting capacity of 3-pole AF(C)(S)26 ... 38 contactors on which it is fitted and for preparation of the wiring before final connection to the contactor. LD38-4 blocks is 3-pole terminal block with tunnel terminals.
Technical Specifications
Dimensions
| Product Net Width | 44.8 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Height | 40.5 mm |
| Product Net Weight | 0.07 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 16 mm² |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/1x 2.5 ...10/...16 mm² |
| Connecting Capacity Main Circuit | Flexible with Insulated Ferrule 1x 2.5 ... 16 mm² |
| Connecting Capacity Main Circuit | Flexible with Insulated Ferrule 1/1x 2.5 ...10/...16 mm² |
| Connecting Capacity Main Circuit | Rigid Solid 1/2x 2.5 ... 4 mm² |
| Connecting Capacity Main Circuit | Rigid Stranded 1/1x 6 ...16/ ... 25 mm² |
| Wire Stripping Length | Main Circuit 14 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Connecting Terminals (delivered in open position) Main Poles | M5 with 2 x (7 width x 5.8/9.2 depth) double connector |
| Recommended Screw Driver | Main Circuit Slot |
| Recommended Screw Driver | Main Circuit 6.5 |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening torque | Main Circuit 2.5 N·m |
| Terminal Type | Screw Terminals |
| Suitable for | AF26 |
| Suitable for | AF26Z |
| Suitable for | AF30 |
| Suitable for | AF30Z |
| Suitable for | AF38 |
| Suitable for | AF38Z |
| Suitable for | AFC26 |
| Suitable for | AFC30 |
| Suitable for | AFC38 |
| Product Name | Additional Terminal Block |
Technical UL/CSA
| Connecting Capacity Main Circuit UL/CSA | 1x 8-4 AWG |
| Connecting Capacity Main Circuit UL/CSA | 2x 8-6 AWG |
| Tightening Torque UL/CSA | Main Circuit 22 in·lb |
